INFO - Recent Problems

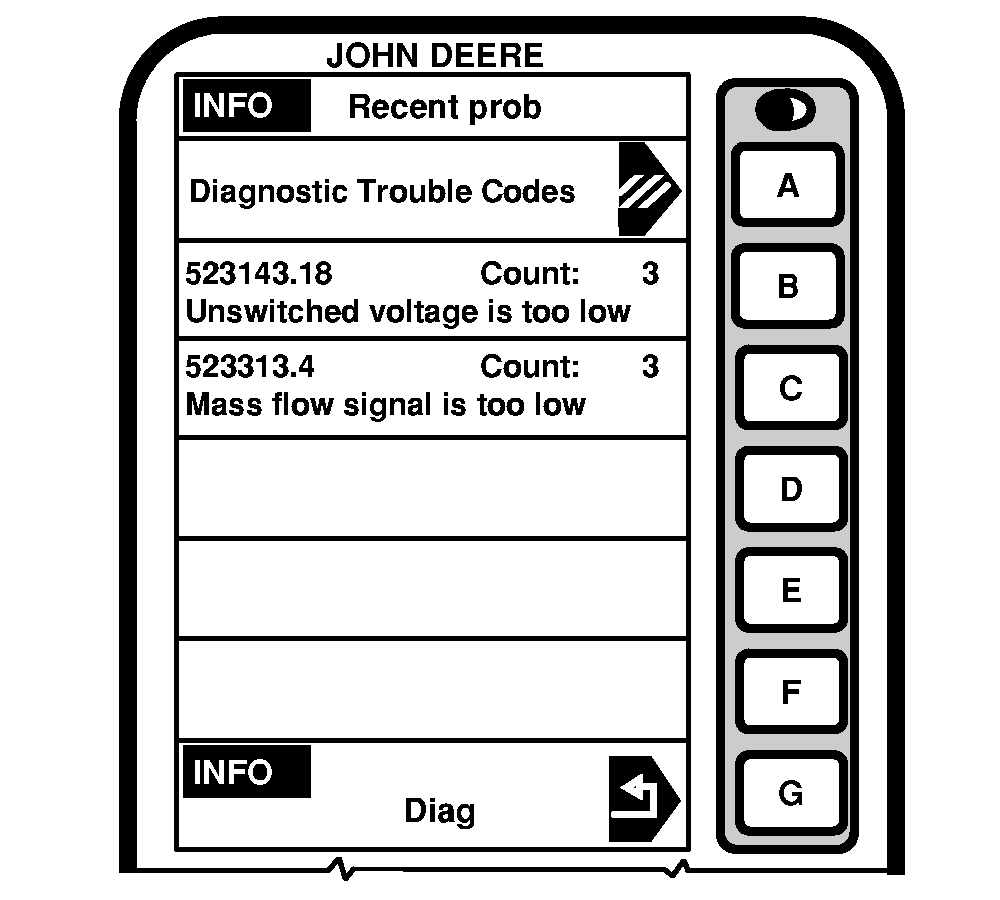

Press letter button next to "Recent Problems" on INFO - Diagnostics screen and INFO - Recent prob screen will appear.

This page shows detailed information about the recent system problems. This information will help troubleshoot the system. This page shows all the Diagnostic Trouble Codes that have occurred since the last time they were cleared.

NOTE: It may be necessary to press the page button to advance to the next screen of recent problems.

Trouble Codes and SPN. FMI that may appear:

• Plunger Initialization Failure - 523107.7
• Actuator Shorted - 523107.6
• Relay Failure - 523106.11
• Motor Failure - 523105.12
• Switch voltage is too low - 523316.18
• Unswitched voltage is too low - 523143.18
• Mass Flow supply is too low - 522979.18
• Mass Flow supply is too high - 522979.16
• Analog voltage is too low - 523951.18
• Analog voltage is too high - 523951.16
• Low memory record space - 523910.18
• Mass Flow signal is too low - 523313.4
• Mass Flow signal is too high - 523313.3
• Loss of Harvest Doc - 522976.14
• Motor stalled - 523105.14
• Temperature is out of range - 522878.16

To clear the recent problems, press letter button next to "Diagnostic Trouble Codes" on INFO - Recent prob screen.

OUO6075,000373D -19-18MAY04-1/1
