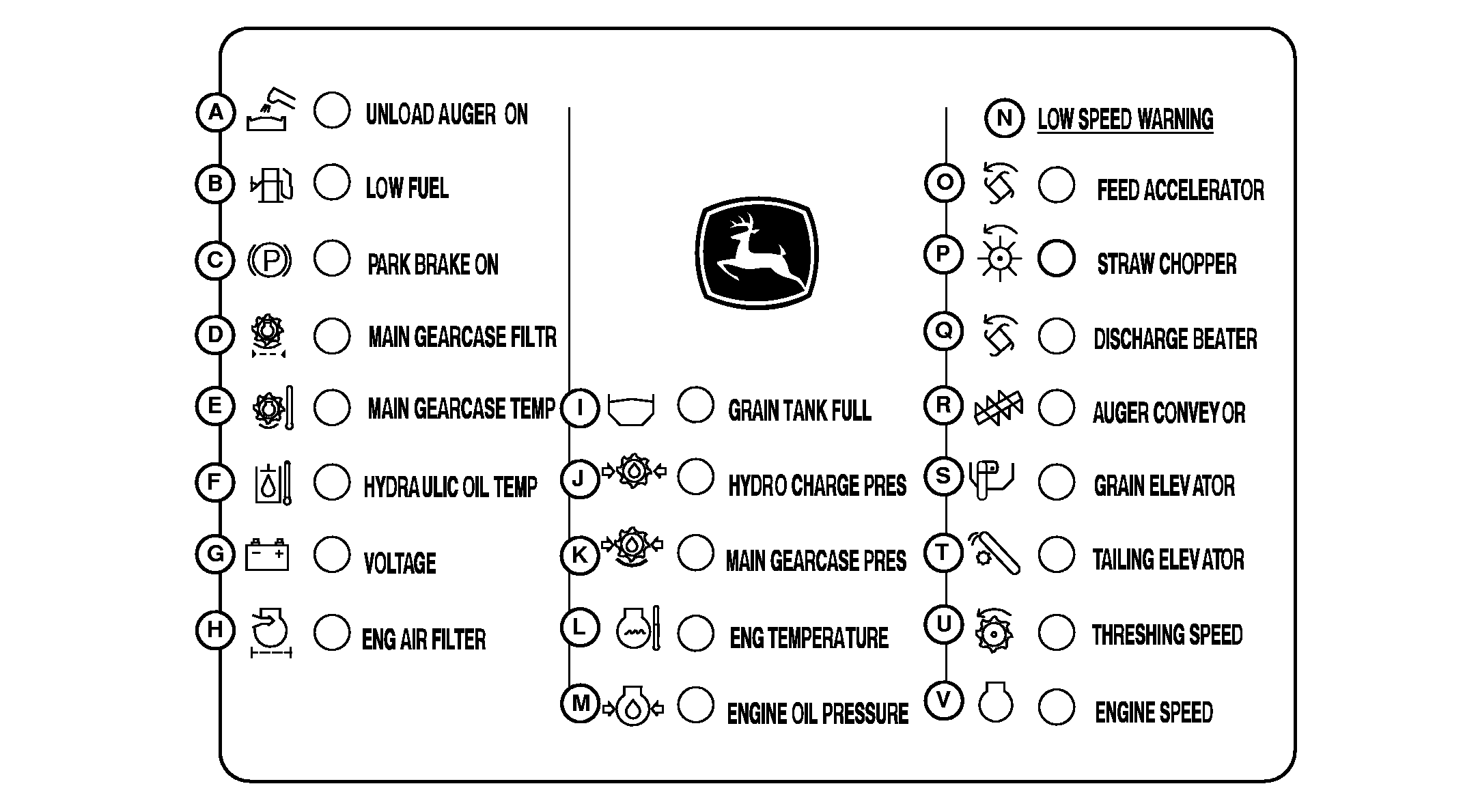

A-Unload Auger ON
B-Low Fuel
C-Park Brake ON
D-Main Gearcase Filter
E-Main Gearcase Temp
F-Hydraulic Oil Temp

G-Voltage
H-Eng Air Filter
I-Grain Tank Full
J-Hydro Charge Pres
K-Main Gearcase Pres
L-Eng Temperature

M-Engine Oil Pressure
N-Low Speed Warning
O-Feed Accelerator
P-Straw Chopper
Q-Discharge Beater

R-Auger Conveyor
S-Grain Elevator
T-Tailing Elevator
U-Threshing Speed
V-Engine Speed

Shows a red, yellow, or green light and sounds a buzzer for the following conditions:

• Red Light - Stop engine at once and correct problem
• Yellow Light - Service or correct problem. Stop engine as required
• Green Light - Be aware of condition

NOTE: Warning lights dim at night when field or road lights are turned ON.

When key is in start position, all lights on the overhead warning display panel will come ON.

OUO6075,0003799 -19-02JUN04-1/1
