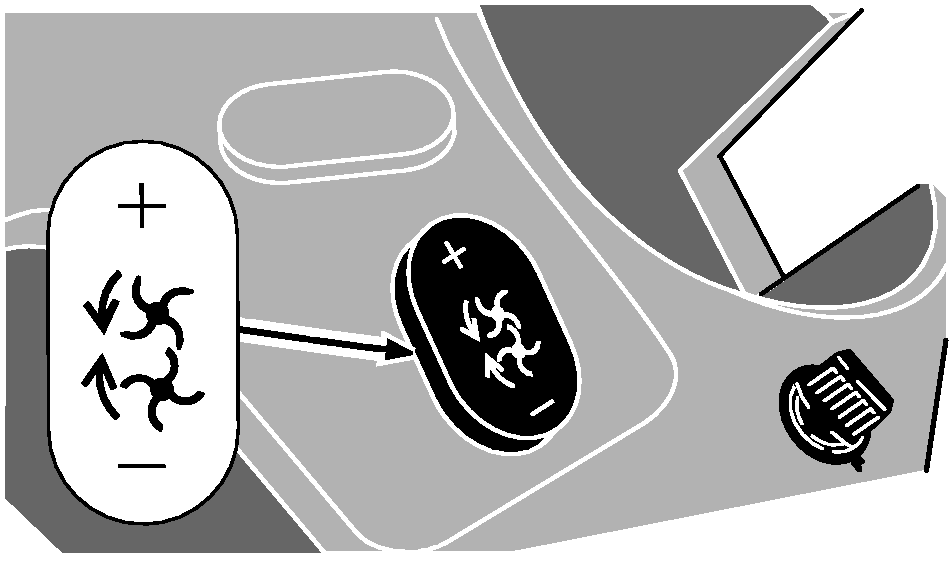

Spreader Speed Switch (Black)

IMPORTANT: Operate spreader on slow speed for corn and sunflowers. Engage separator and header, with engine at high idle push and hold bottom of spreader speed switch. Decrease speed until spreader low speed warning activates. Push and hold top of spreader speed switch to increase speed, until warning light deactivates, then release switch. Spreader speed should operate faster than 180 rpm.

Spreader speed switch controls the speed of the spreader discs. To increase speed, press and hold (+) symbol or press and hold (-) symbol to decrease speed.

OUO6075,00037A6 -19-24MAY04-1/1
