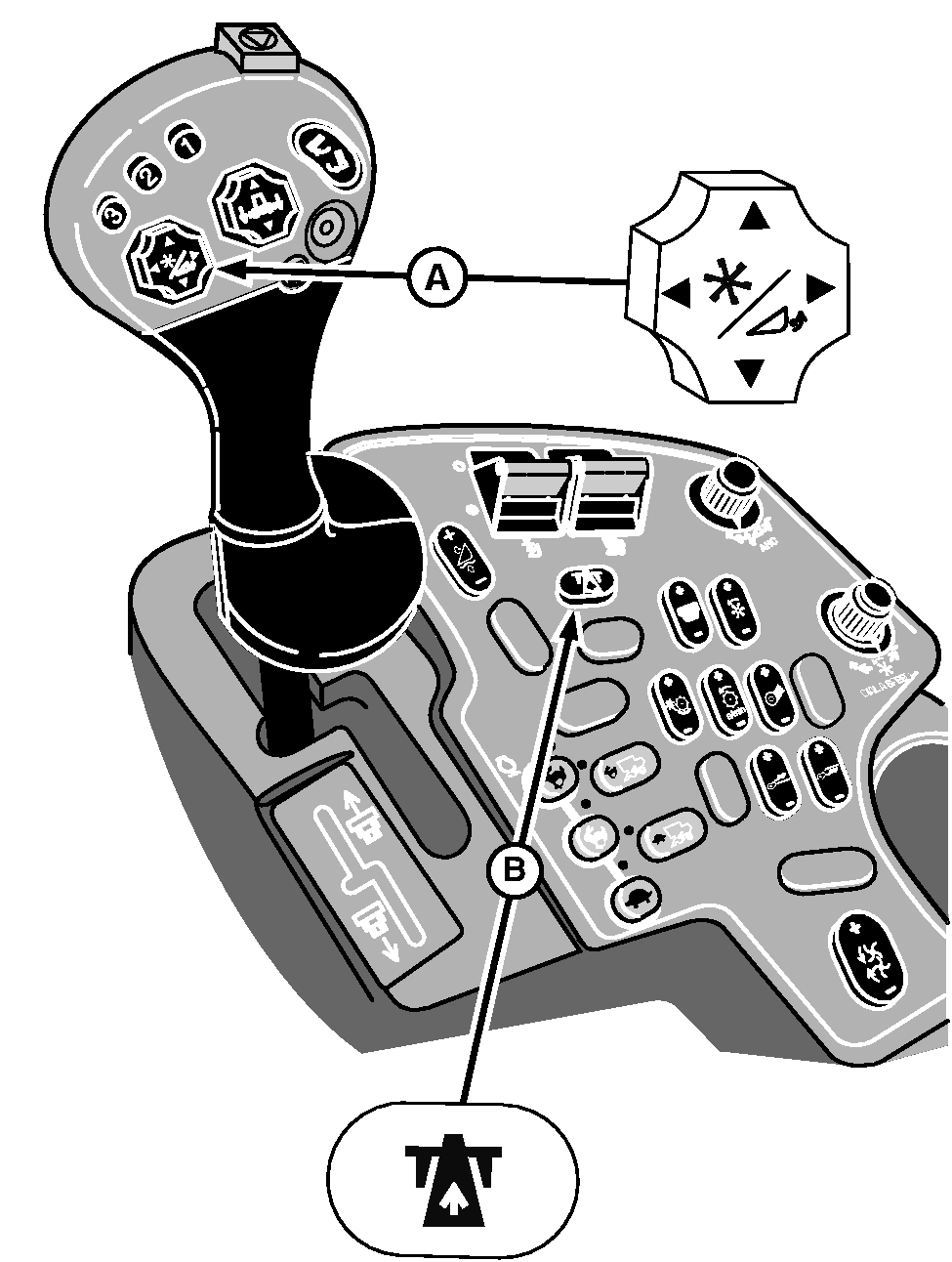

Reel Lift/Reel Fore and Aft Switch (Black)IMPORTANT: Switch and reel movements are opposite 50 Series models. Reel position switch (A) controls the position of the reel. To adjust the reel position, road transport disconnect switch (B) must be in field position. Push and hold top of switch to raise reel or press and hold bottom of switch to lower reel. Push and hold left side of switch to move reel forward or press and hold right side of switch to move reel rearward. When equipped with a variable speed feeder house and are using a corn head or a row-crop head the reel position switch also controls the front end speed and corn head adjustable deck plate spacing (if equipped). Press and hold top of switch to increase speed or press and hold bottom of switch to reduce speed. If corn head is equipped with adjustable deck plates, press and hold left side of switch to increase deck plate spacing and press and hold right side of switch to decrease deck plate spacing. If both Active Header Control or automatic auger swing are operated at the same time when the switch is used, reel or variable speed feeder house response may vary. |
|
