Header Activation Buttons (Black)

When activation buttons (A), (B) or (C) are pressed the following functions are performed:

• Header Height Resume
• Header Height Sensing
• CONTOUR MASTER Control
• Reel Position Resume
• Active Header Float

The electronic control system will move the header back to preselected positions.

NOTE: Header positions obtained by pressing activation buttons (A), (B) or (C) may be overcome by pressing switches (D) or (E). Once activation buttons have been manually overcome, press the desired activation button to reactivate the system.

Activation buttons can be activated when:

• Properly equipped header is connected to combine
• Engine is running
• Road transport disconnect switch is in field position
• Header Height Resume, Header Height Sensing or Active Header Float mode are enabled
• Header is engaged

The system is activated by pressing header activation buttons on the multifunction control handle. Header control system will take control and move the header to the selected position.

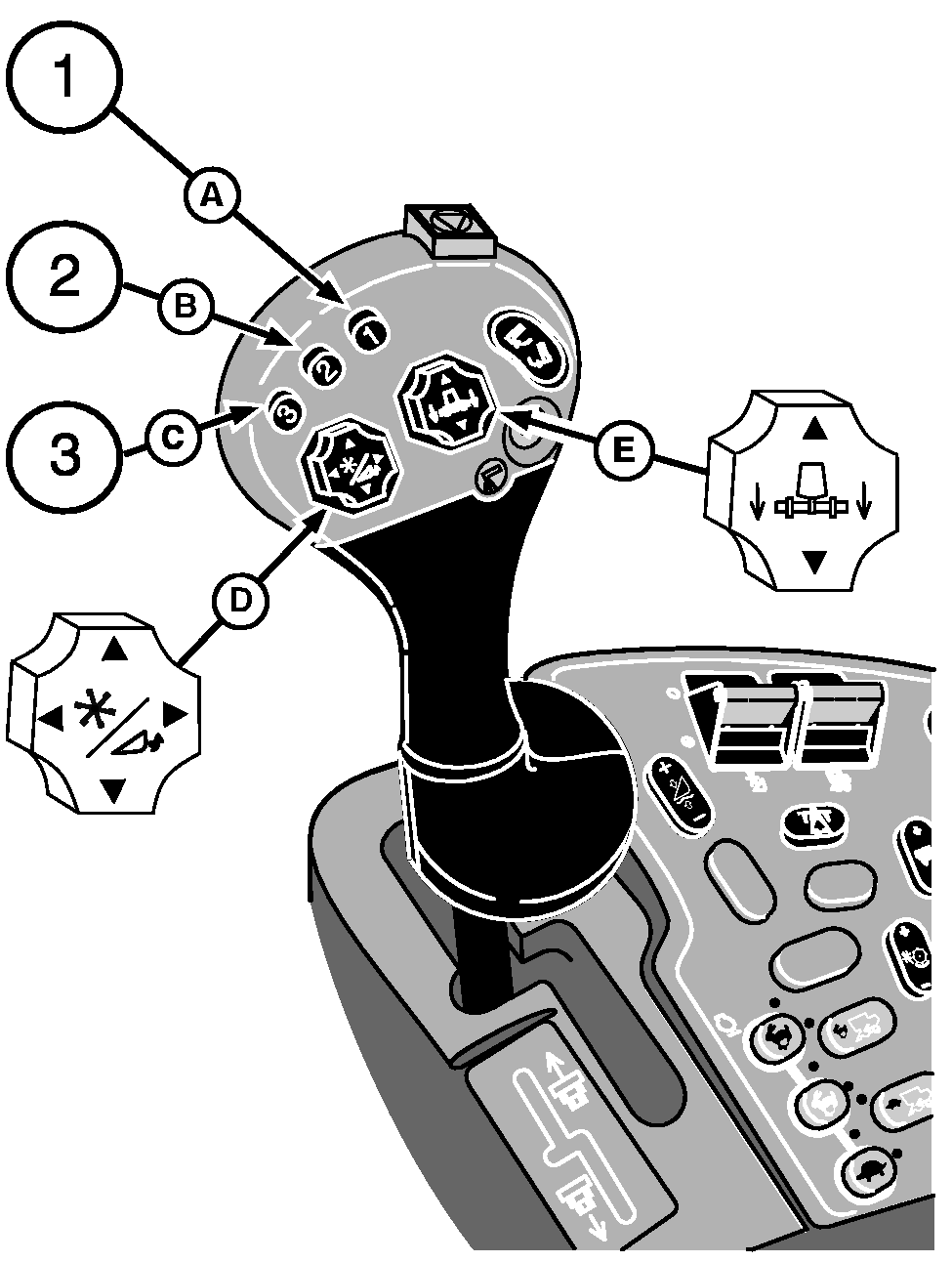

A-Activation Button 1
B-Activation Button 2
C-Activation Button 3
D-Reel Lift and Reel Fore/Aft Switch
E-Header Raise and Lower and Tilt Switch
