Header Height ResumeHeader Height Resume allows the operator to select the position of the feeder house relative to the combine and return to that position automatically. Header Height Resume must be calibrated each time that the header is used with the combine (see Calibration Procedures section). Activation buttons 1, 2 or 3 located on the multifunction control handle are used to select one of the three different programmable header heights. NOTE: If both Header Height Resume and Header Height Sensing are enabled, only activation button 1 will activate Header Height Resume, activation buttons 2 and 3 will then be assigned to Header Height Sensing. OperationHeader Height Resume will be active when:
|
|
OUO6075,00037AF -19-01FEB05-1/2 |
|

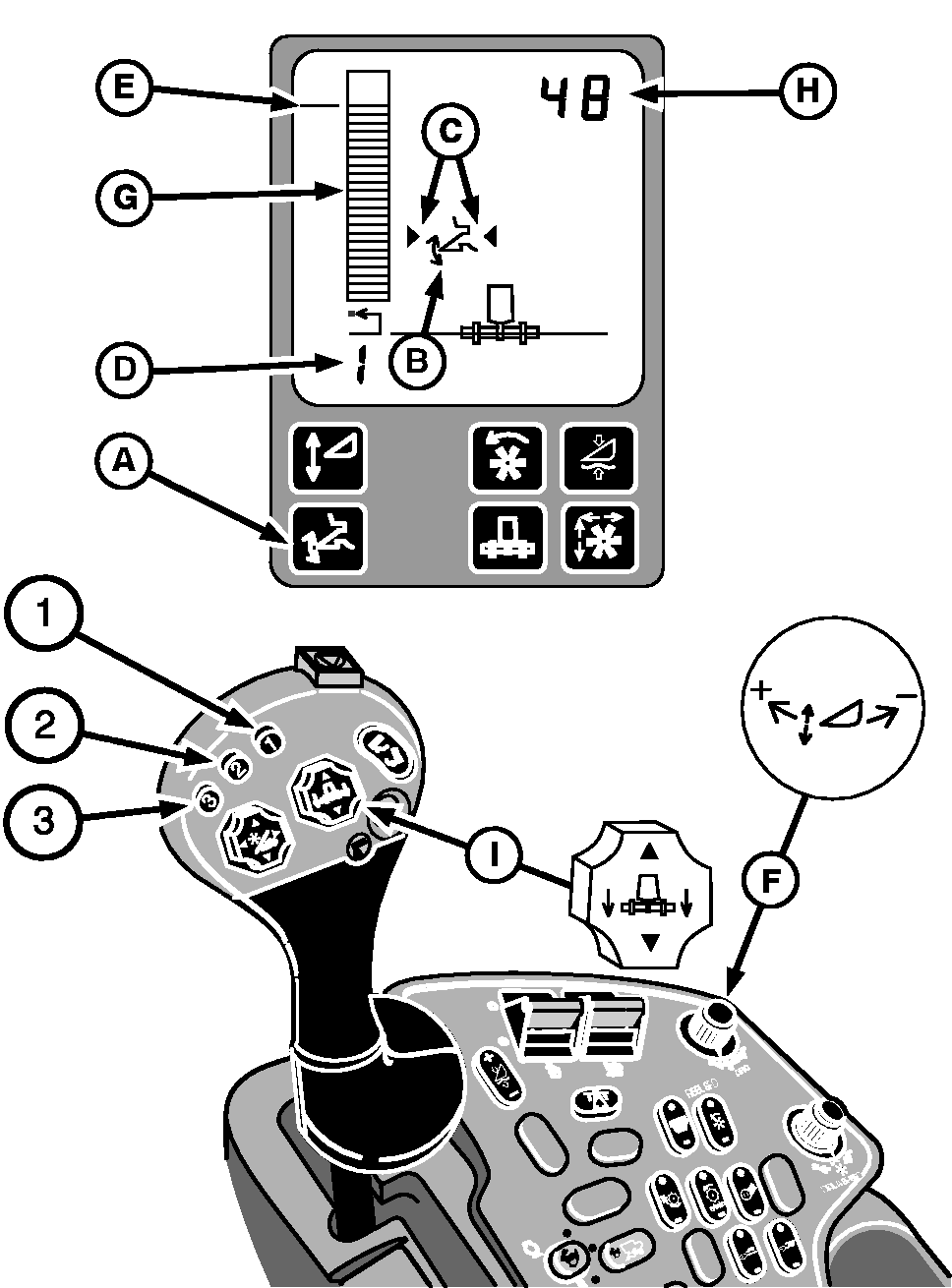

The system is enabled by pressing button (A) on the display. Symbol (B) will appear on the display. Activate Header Height Resume by pressing activation buttons 1, 2 or 3 on the multifunction control handle. Arrow symbols (C) indicate the system is active. Number (D) in the lower left corner of the display indicates which activation button was selected. To change the height setpoint (E) of the activation buttons, press the desired activation button and adjust the height using active header height control dial (F). Turn active header height control dial towards the plus (+) symbol to raise the header and setpoint or towards the minus (-) symbol to lower the header and setpoint. Bar graph (G) and numeric display (H) show the relative position of the header based on the Header Height Resume sensor linked to the feeder house. Manually adjusting header height using header raise/lower switch (I) will deactivate the system. Press any of the three activation buttons to reactivate the system. Header will now move to the pre-selected height. The system can be disabled by pressing button (A) on the display. |
|
