Digital Display Lines

Upper line (A) will only display ground speed (MPH).

NOTE: When chaffer/sieve adjust switches are pressed on the armrest, the settings will appear for 10 seconds on the middle and lower lines of the display and then will return to what was previously displayed.

Middle display line (B) and lower display line (C) can display the same data. The operator can select any of the following data to be displayed on either line (middle or lower) of the display.

  • Engine Speed (RPM)
  • Threshing Speed (RPM)
  • Fan Speed (RPM)
  • Header Backshaft Speed (RPM)
  • Concave Clearance as a relative number

To display engine and separator hours, press the hour/separator button (D). Engine or separator hours along with the appropriate symbol will be displayed on middle display line. The hours will remain displayed for ten seconds or until another button is depressed which will return the display to its previous mode.

Pressing the concave, cleaning fan speed or single tine separator speed switches on the armrest will cause that function to be displayed on the tachometer. It will remain displayed for 10 seconds after the switch is released.

Middle and lower display always show the last information displayed when the key was turned OFF.

Either the middle line or the lower line of the display can be changed by the operator to display any data of his choice.

The line that is currently active to change, will be shown by an indicator arrow (E) at the left side of the display. The appropriate arrow will be displayed when the operator pushes the up/down arrow button (F) which will move the display from the currently active line to the other line.

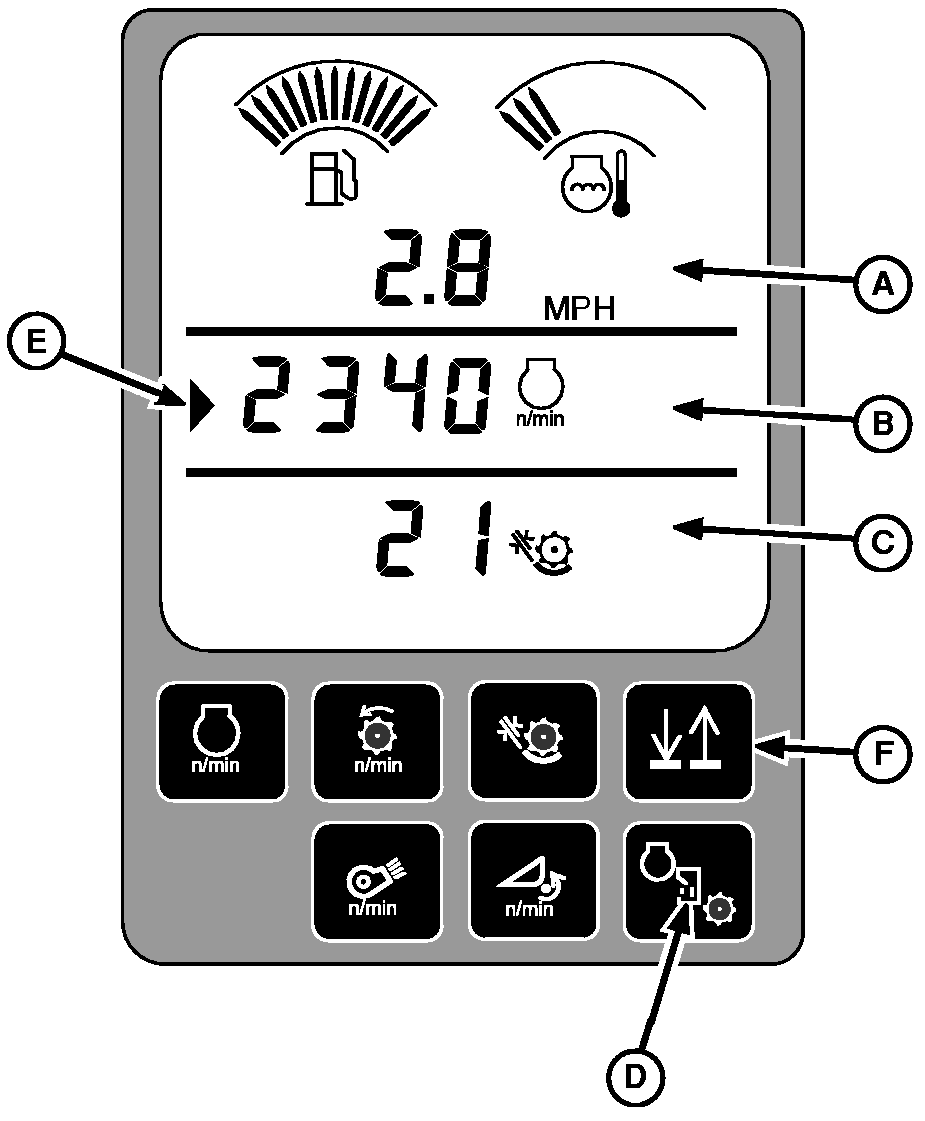

H57912


A-Upper Line
B-Middle Line
C-Lower Line
D-Engine/Separator Button
E-Indicator Arrow
F-Up/down Arrow Button
