Left-Hand Side Front Shield

causym CAUTION: Shut OFF engine, set parking brake and remove key.

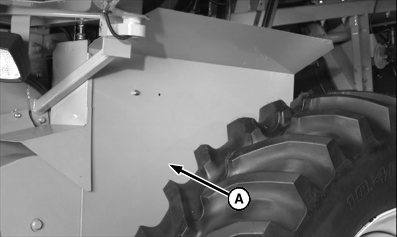

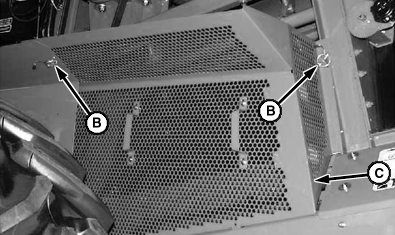

Remove front shield (A) by removing quick-lock pins (B), lift and remove shield (C).

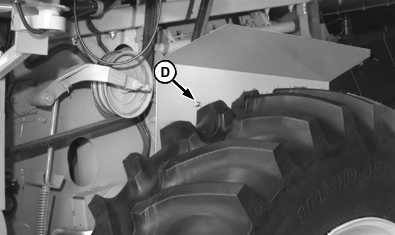

Pull front shield rearward. Remove shield completely by removing cap screw (D) and pull shield out of support.


A-Front Shield
B-Quick-Lock Pins
C-Shield
D-Cap Screw
