Right-Hand Side Shields

causym CAUTION: Shut OFF engine, set parking brake and remove key.

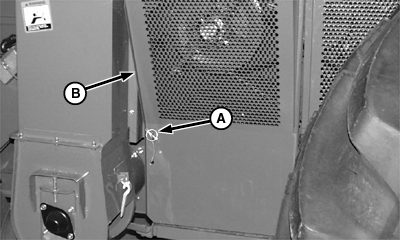

Remove quick-lock pin (A) and open rear shield (B) to service belts.


A-Quick-Lock Pin
B-Rear Shield

H62139

OUO6075,00037E8 -19-26MAY04-1/2

Remove quick-lock pins (A) and (using a screwdriver) turn lock (B) counterclockwise to unlock.

Lift and remove rear shield (C) and middle shield (D).


A-Quick-Lock Pin
B-Lock
C-Rear Shield
D-Middle Shield

H62140
H62141

OUO6075,00037E8 -19-26MAY04-2/2
