CAUTION: Raise feeder house, shut OFF engine, set parking brake, remove key and lower safety stop.

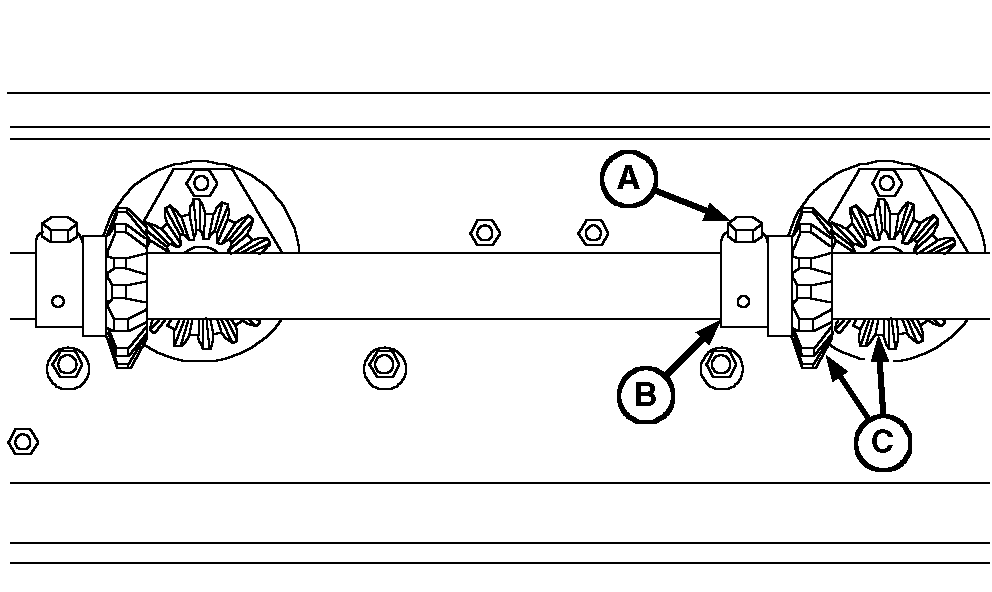

Loosen nut (A) on clamp (B).
Adjust gears (C) until they touch.
Back clamp off 0.8 mm (1/32 in.) and tighten nut. Do not run gears too tight.
A-Nut B-Clamp C-Gears
OUO6075,00037FE -19-26MAY04-1/1
