Cleaning Fan Speed Actuator-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

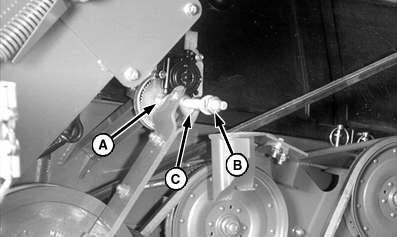

Adjust inner nuts (A) inward to end of threads next to gear. Adjust outer nuts (B) to outside end of shaft.

Start engine and engage separator. Adjust fan speed to 1200 rpm.

Disengage separator, shut OFF engine and remove key.

Adjust two inner nuts against trunnion (C).

Start engine, engage separator and adjust fan speed to 500 rpm.

Disengage separator, shut OFF engine and remove key.

Adjust two outer nuts against trunnion.

A-Inner Nuts
B-Outer Nuts
C-Trunnion

OUO6075,0003802 -19-26MAY04-1/1
