Chaffer/Sieve Motor (Optional)-Manual Adjust

CAUTION: Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.

NOTE: Same manual adjust procedure can be used on the chaffer or sieve motor.

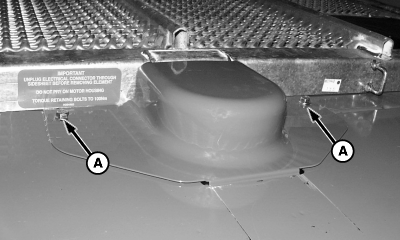

1. Remove cap screws (A) to access motor.

A-Cap Screws

OUO6075,0003808 -19-26MAY04-1/2

IMPORTANT: To prevent adjusting motor damage, do not use wrench on knurled knob.

NOTE: Once chaffer or sieve adjusting motor has been repaired or replaced, adjusting motor will have to be re-calibrated. (See Sieve Sensor Calibration and Chaffer Sensor Calibration).

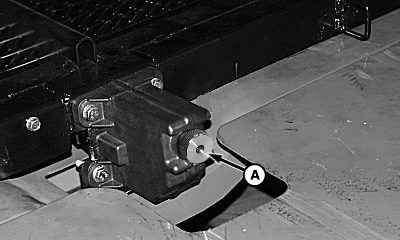

2. Use knurled knob (A) to adjust motor. Turn nut clockwise to close and counterclockwise to open chaffer/sieve.

A-Knurled Knob
