Grain Tank Drain Holes

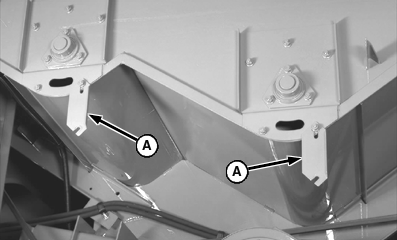

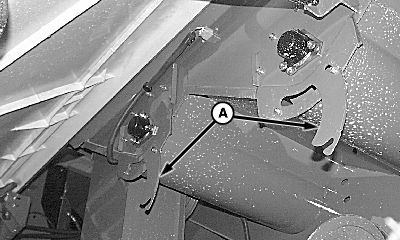

Grain tank drain hole doors (A) are located on the right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.

To open, loosen cap screws and slide doors away from drain holes.

A-Drain Hole Doors

OUO6075,0003828 -19-27MAY04-1/1
