Grain Tank Sample Trough

Grain tank sample trough (A) allows the operator to get a sample of the harvested crop from the loading auger without entering the grain tank.

With combine full of harvested crop, bring multifunction control handle to neutral and stop. Apply the parking brake.

Disengage header, but leave separator engaged.

CAUTION: Do not have a second person check for a grain tank sample.

Open door (B). The lower end of the grain tank trough will spill off a sample of the harvested crop.

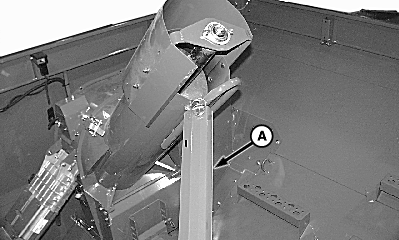

A-Sample Trough

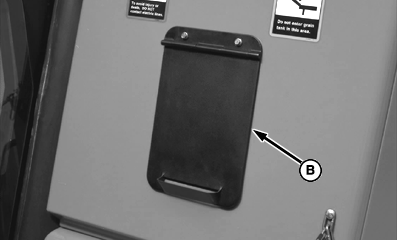

B-Door

OUO6075,0003829 -19-27MAY04-1/1
