Grain Tank Cross Auger Covers

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: If these covers are raised too far in edible beans, auger drive shear bolt may break repeatedly, or damage could occur to augers or grain tank.

Normal Position:

Adjust auger covers down to slow unloading rate. Also adjust auger cover down in edible beans.

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and re-install pins and lock pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

Rice Position:

NOTE: Auger covers come preset for rice and edible beans position from factory.

Left-hand side of auger covers should be set to middle position.

Right-hand side of auger covers should be set to lowest position.

NOTE: Covers should be set to the top position for all other crops.

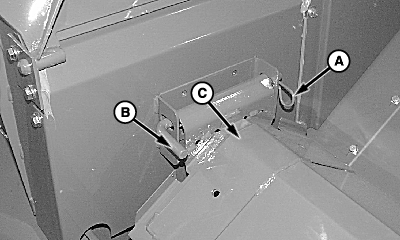

A-Locking Pins
B-Pins
C-Auger Cover

OUO6075,000382B -19-27MAY04-1/2

CAUTION: Shut OFF engine, set parking brake and remove key.

Normal Position:

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and re-install pins and lock pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Covers should be set to up most position for all crops.

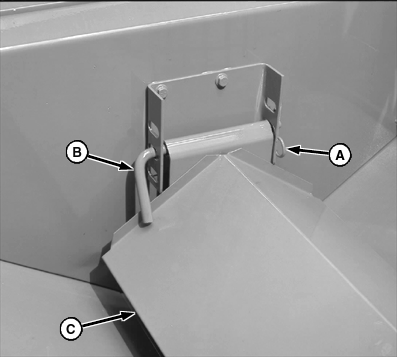

A-Locking Pins
B-Pins
C-Auger Covers

OUO6075,000382B -19-27MAY04-2/2
