Multifunction Control Handle Linkage Adjustment

If combine "creeps" with multifunction control handle in neutral, then adjust as follows:

CAUTION: Control cable is designed and assembled to be non-repairable. Do not attempt to modify or repair cable; replace if damaged.

Do not adjust or install control cable with the engine running, machine may move. Shut OFF engine, set parking brake and remove key.

Place multifunction control handle in neutral. Remove ball joint nut (A) from pump arm (B) (be certain pump arm is in neutral [spring loaded detent]). Loosen jam nut and turn ball joint (C), until ball joint stud passes freely into arm hole. Do not move arm from its neutral position. Use inside hole for 105cc/rev pump (heavy duty final drives).

If adjustment at the ball joint (fine thread end) is not adequate, more adjustment (coarse thread end) is available using the cable bulkhead jam nuts (D). Be certain adequate thread remains in the ball joint and all hardware is tightened.

If creeping still occurs, see your John Deere dealer.

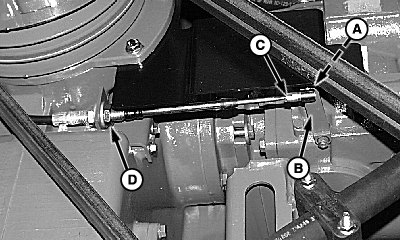

A-Ball Joint Nut
B-Pump Arm
C-Ball Joint
D-Jam Nuts
