Factory Crop 2 (WHEAT 2) and Personal CROP1 - CROP5 Setting Changes (Automatic Calibration)

NOTE: Factory crop will be displayed as WHEAT 2, etc. Personal crop settings will be displayed as CROP1-CROP 5, etc, or a specified name. Personalizing threshing speed, concave clearance, fan speed, chaffer clearance and sieve clearance will not override factory one settings, because system will automatically default to factory two settings.

1. To save crop settings using automatic calibration, header and separator must be engaged, and engine is at high idle.

2. Press TOUCHSET calibration button (A).

3. Text display will alternate between crop name (B) and EOC.

4. Press enter button (D) to save current settings to selected crop.

5. Press back or abort button (C) to not save settings.

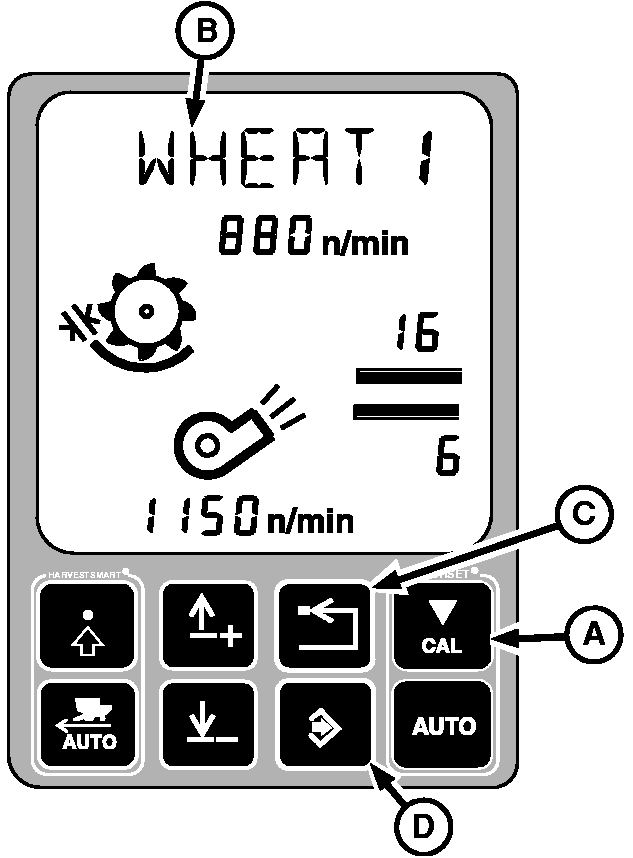

H80982


A-TOUCHSET Calibration Button
B-Crop Name
C-Back or Abort Button
D-Enter Button

OUO6075,0003860 -19-29JUN04-1/1
