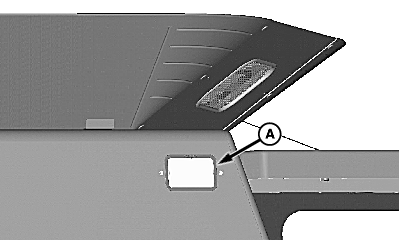

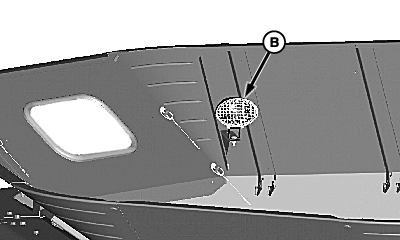

Side Finder and Grain Tank LightsThe side finder light (A) provide the operator with area lighting to each side of the combine for night operation and low light conditions. When the field light switch is turned ON, the side finder lights are enabled. The turn signal lever will actuate either the right or left side finder light. These lights will not operate when the flashing warning lights are ON. Grain tank light (B) also operates with the field light switch.
|
|
