Record Stop Height

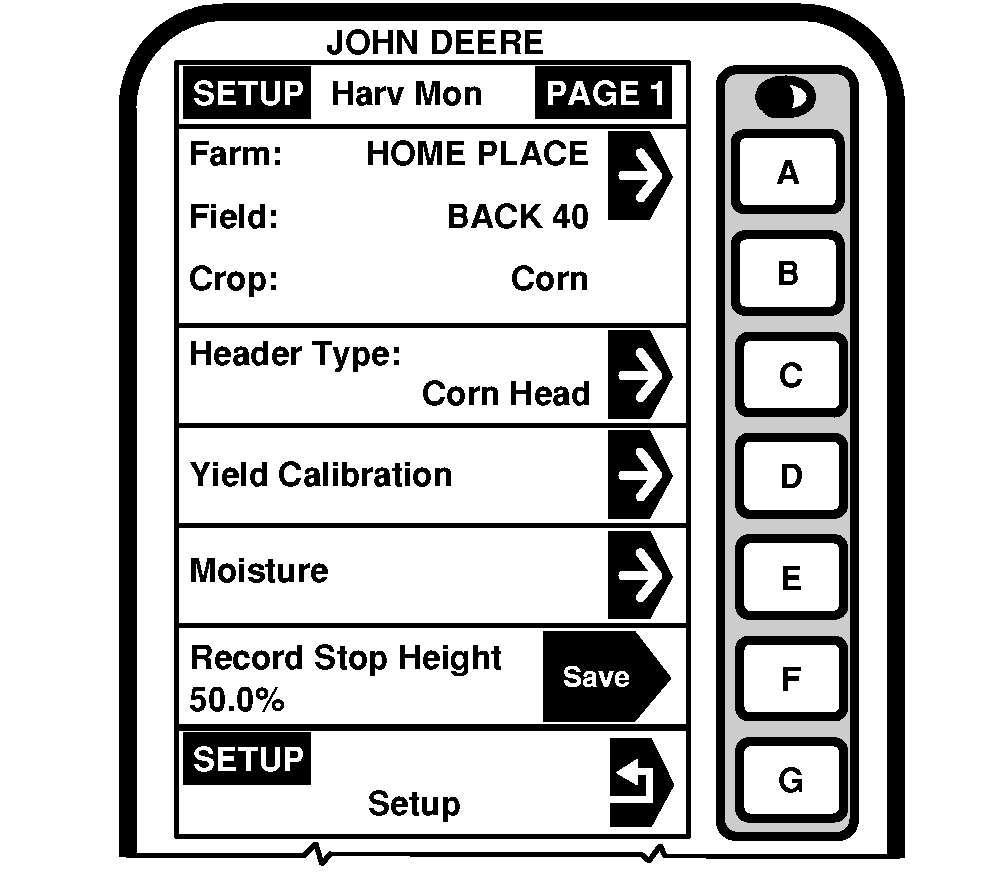

Press letter button next to "Record Stop Height" to save and new Stop Height. At and above this height the HARVEST MONITOR ™ system will automatically stop recording yield data. Below this height the recording data will start automatically provided all other conditions are met (separator on, proper elevator speeds, etc.). This height will be displayed as a percentage of feeder house angle (0% down, 100% up) and is found on SETUP Harv Mon - PAGE 1.

HARVEST MONITOR is a trademark of Deere & Company

OUO6075,000393E -19-15JUN04-1/1
