Manual Adjustment of Calibration Factor

NOTE: Do not perform a manual adjustment of Calibration Factor if you intend on using the Low Flow Compensation procedure.

A new calibration factor can also be entered manually. To calculate calibration factor, divide weight shown on display by new weight on scale ticket. Multiply result by displayed calibration factor (see example below). This is the new calibration factor.

To manually enter a calibration factor:

2. Using numeric keypad, input calibration factor.

3. Press letter button next to "Calibration Factor" to ENTER new value.

OUO6075,0003945 -19-18JUN04-1/2

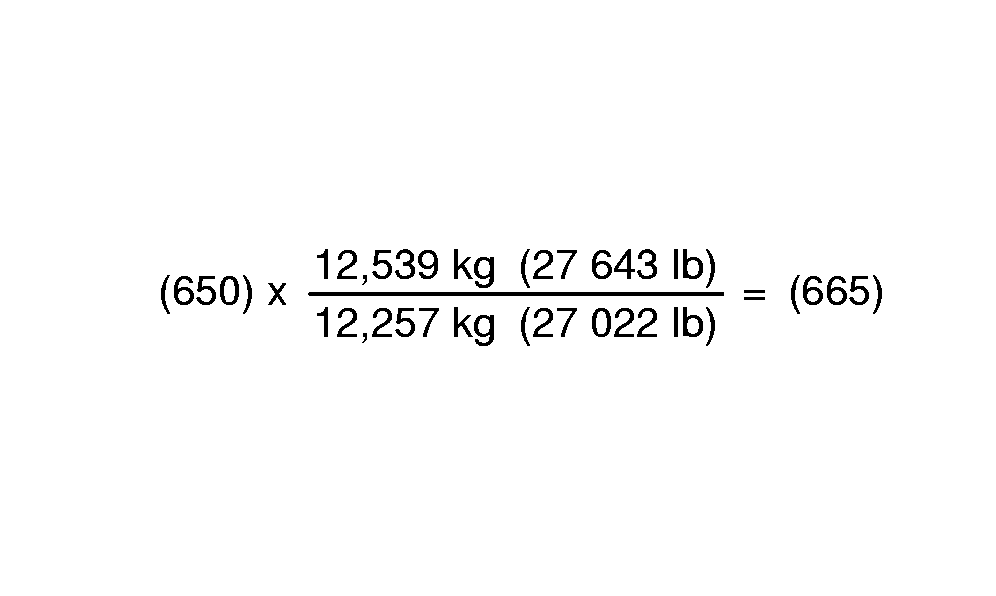

Example:

Displayed Calibration Factor = 650

Weight of grain shown on display = 12,539 kg (27,643 lb)

Net weight of grain from scale ticket = 12,257 kg (27,022 lb)

New Calibration Factor = 665

OUO6075,0003945 -19-18JUN04-2/2
