HARVESTSMART Response Rate-Calibration

NOTE: HARVESTSMART Feed Rate Control in SMART mode or capacity (CPCTY) mode use the same calibration procedures.

RSPNS sets aggressiveness of feed rate response to crop density changes. High response settings will cause the combine to make abrupt changes in ground speed to maintain crop volume. Lower response settings will allow for less aggressive changes.

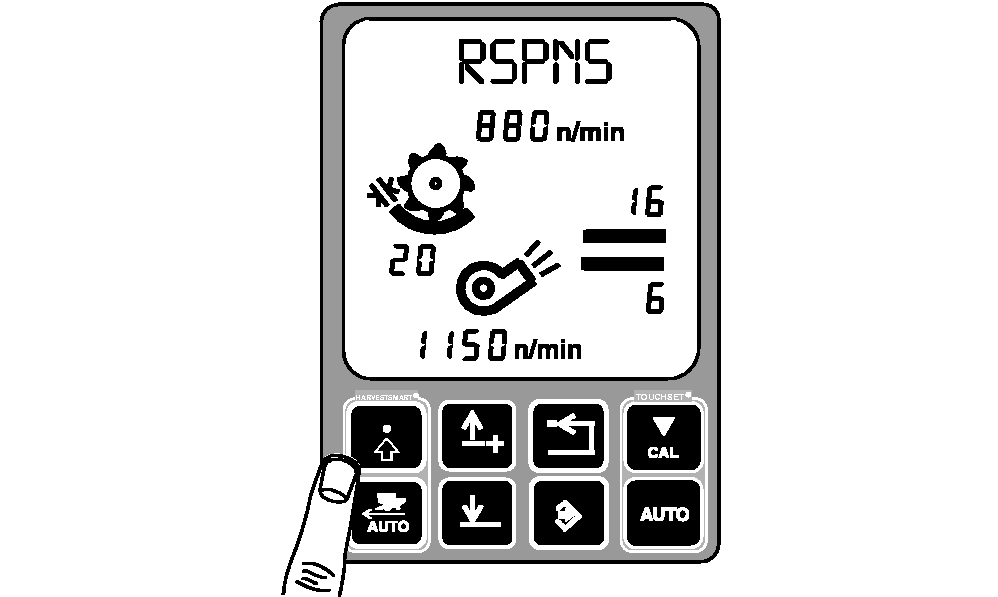

Press HARVESTSMART settings button until RSPNS is displayed.

OUO6075,0003979 -19-30JUN04-1/3

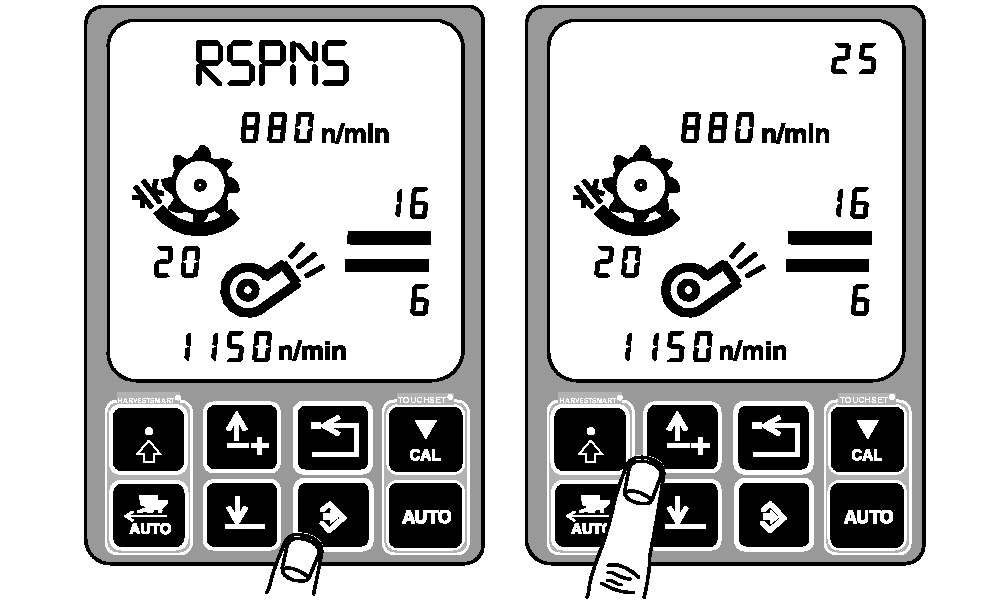

Press enter button to access RSPNS calibration. System response rate will be displayed in upper right-hand corner of display.

Press up or down arrow button to increase or decrease system response rate.

OUO6075,0003979 -19-30JUN04-2/3

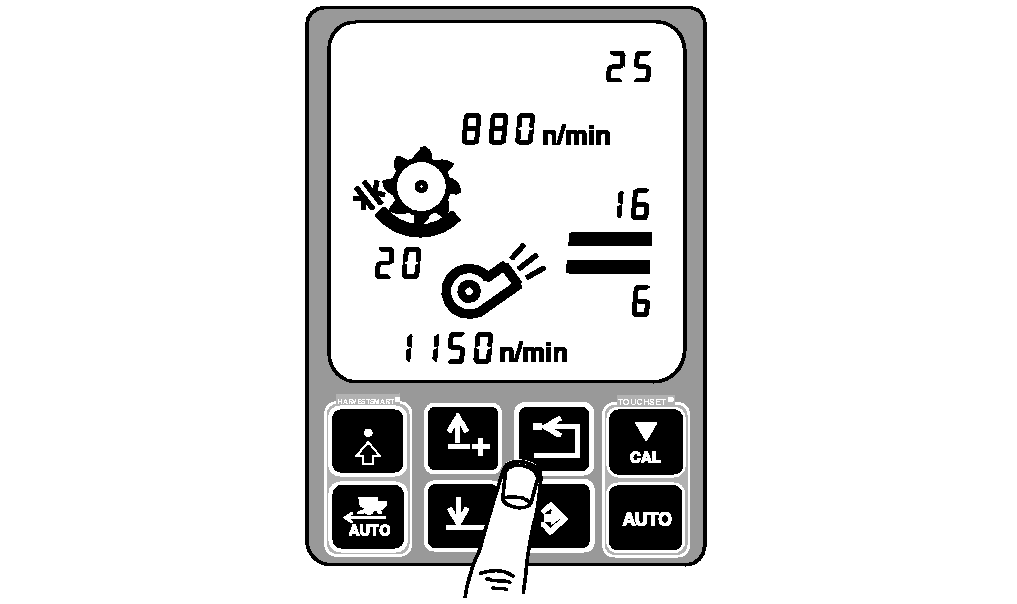

Press back arrow button to exit.

OUO6075,0003979 -19-30JUN04-3/3
