HARVESTSMART Maximum Ground Speed-Calibration

NOTE: HARVESTSMART Feed Rate Control in SMART mode or capacity (CPCTY) mode use the same calibration procedures.

MXSPd sets the maximum allowable speed the HARVESTSMART feed rate is allowed to go. The control will not exceed this setting, regardless of crop volume.

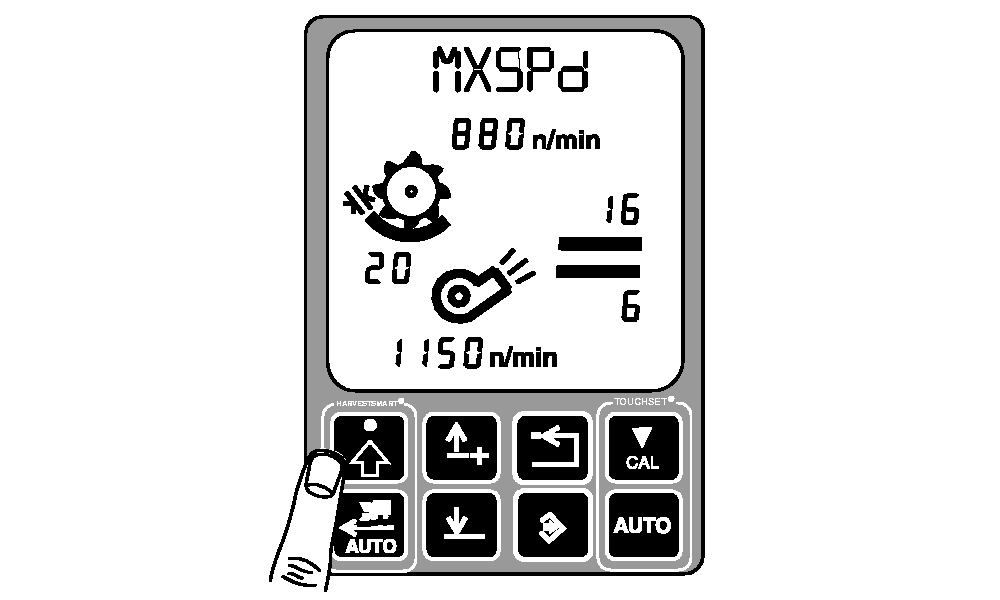

Press HARVESTSMART settings button until MXSPd is displayed.

OUO6075,000397B -19-30JUN04-1/3

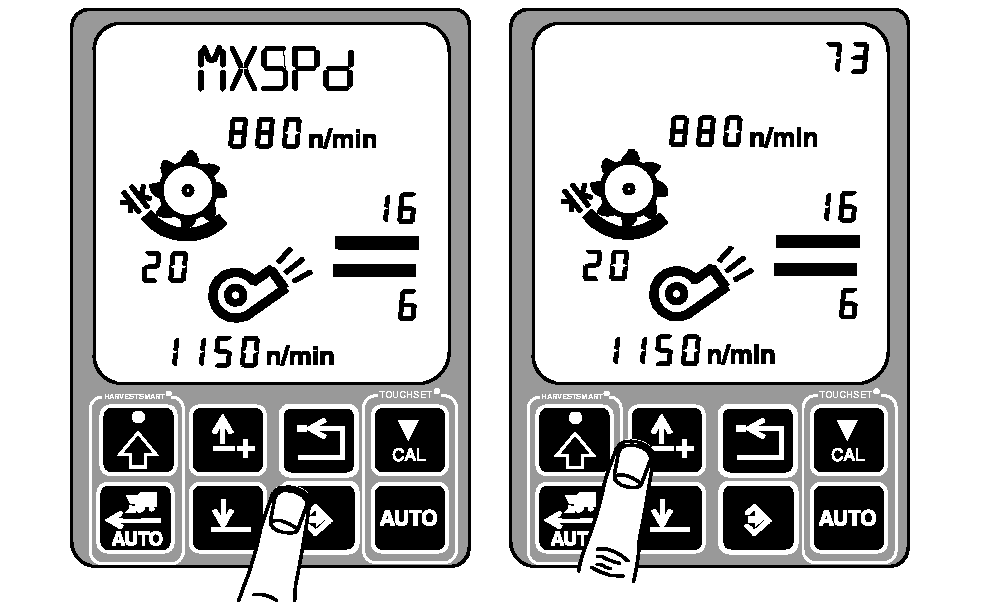

Press enter button to access MXSPd calibration. Maximum ground speed will be displayed in upper right-hand corner of display.

Press up or down arrow button to increase or decrease maximum ground speed.

OUO6075,000397B -19-30JUN04-2/3

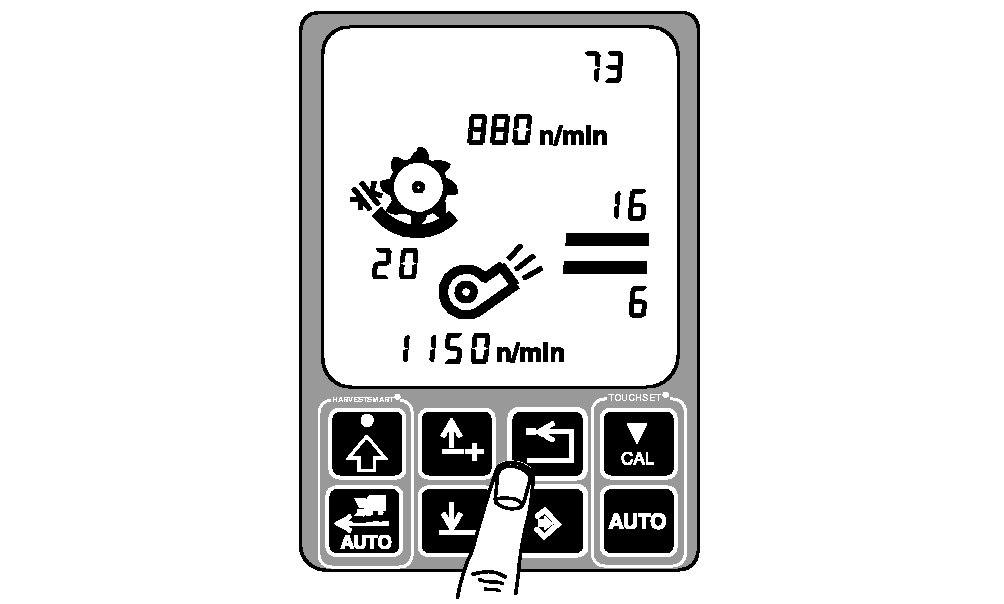

Press back arrow button to exit.

OUO6075,000397B -19-30JUN04-3/3
