Hydrostatic/Hydraulic Oil Level

Check hydrostatic/hydraulic oil level with header on ground and all cylinders retracted. Oil level must be at top of sight glass (A) with feeder house fully lowered. Add oil as needed. Do not overfill.

Shut OFF engine, set parking brake and remove key before checking hydraulic oil at engine gear case. Oil must not be below the low mark on dipstick (B).

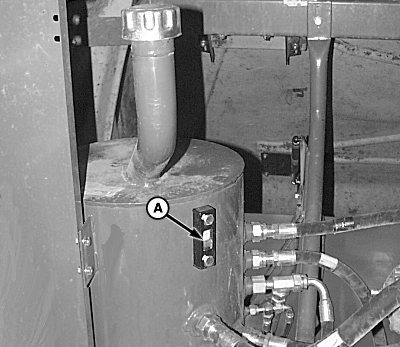

A-Sight Glass

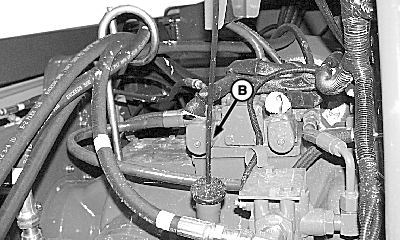

B-Dipstick

OUO6075,0003D8B -19-29JUN05-1/1
