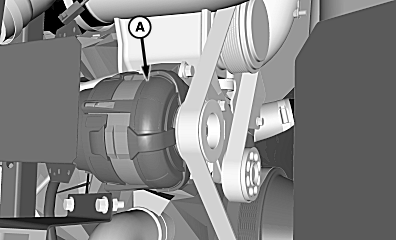

Alternator and Voltage RegulatorAlways disconnect battery ground cable before working on alternator (A) or regulator. This machine is equipped with a 200 amp alternator. Never attempt to polarize alternator or regulator. Never ground a terminal or connect a jumper wire to any alternator terminals. Never connect or disconnect alternator wires with batteries connected or alternator operating.
|
|
