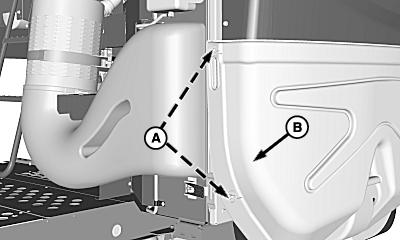

Remove quick-lock pins (A) to open lower radiator door (B).
A-Quick-Lock Pins B-Lower Radiator Door
OUO6075,0003DD6 -19-09FEB05-1/2

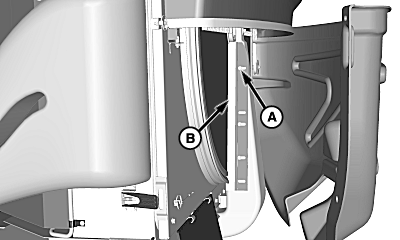

Loosen cap screws (A) and adjust brush (B) as needed to remove crop debris.
A-Cap Screws B-Brush
OUO6075,0003DD6 -19-09FEB05-2/2
