PowerCast Tailboard (Optional)

causym CAUTION: Do not let anyone stand behind spreading tailboard while it is running. Shut OFF engine, set parking brake and remove key before adjusting.

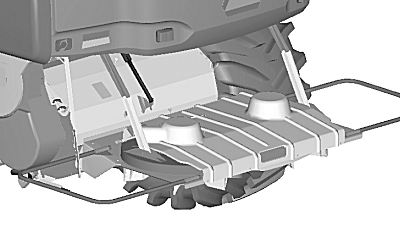

For best performance, the powered tailboard should always run level or parallel to ground. Depending on your tire combinations, it may be necessary to raise or lower the tailboard.

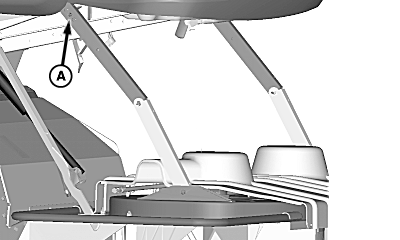

To adjust tailboard, park machine on level ground. Remove cap screw (A) on both side of tailboard arm and raise or lower tailboard to the level position.


A-Cap Screw (2 Used)

H82422
H82421

OUO6075,0003DE0 -19-16JUN05-1/2

IMPORTANT: Powered tailboard is equipped with protective hoops. These hoops can be adjusted for shipping or storage by loosening cap screws on both sides and pushing hoops toward center of machine. When separator is engaged, the hoops should ALWAYS be in the extended position as shown.

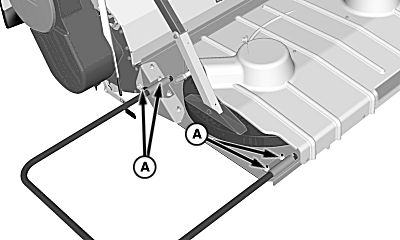

For shipping or storage position loosen cap screws (A) on both sides and push hoops toward center of machine.


A-Cap Screws (4 Used)

H82423

OUO6075,0003DE0 -19-16JUN05-2/2
