Chopper to Windrow Position (Powered Tailboard)

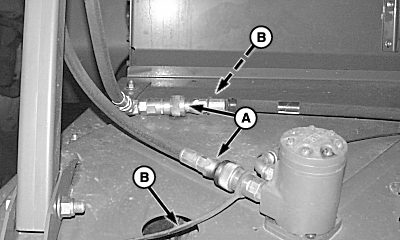

When windrowing with machines equipped with powered tailboard, it is necessary to disconnect hydraulic hoses (A) to stop the disks from turning.

Disconnect hydraulic hoses from tailboard and install dust caps (B).

IMPORTANT: Connect combine side hydraulic hoses together to prevent pump damage.

A-Hydraulic Hoses
B-Dust Caps

OUO6075,0003DE9 -19-10FEB05-1/1
