Spreader Disk Assemblies

Spreader disk assemblies can be removed for service or to provide additional clearance under spreader.

CAUTION: Disk assemblies weigh approximately 25 kg (55 lb).

IMPORTANT: Disk assemblies are left-handed and right-handed. In order to assure correct re-installation, mark disk assemblies before removal.

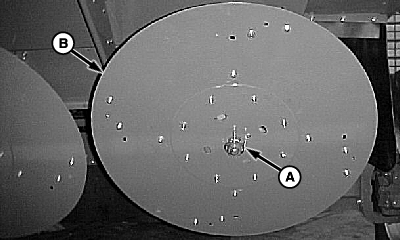

Remove quick-lock pins (A) from spreader shafts and remove disk assemblies (B).

A-Quick-Lock Pins
B-Disk Assembly

OUO6075,0003DED -19-10FEB05-1/1
