Engine Air Scoop

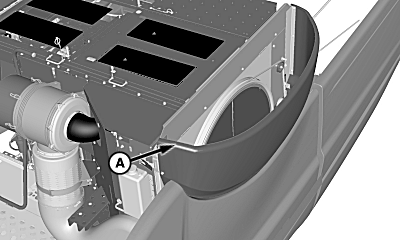

Check engine air scoop as needed for crop debris or foreign material.


A-Engine Air Scoop

H82467

OUO6075,0003E04 -19-07JUL05-1/2

If crop debris or foreign material is found, remove quick-lock pins (A) to open lower radiator door (B) and cleanout material.


A-Quick-Lock Pins
B-Lower Radiator Door

H82388

OUO6075,0003E04 -19-07JUL05-2/2
