OMH226957: 9660 STS and 9760 STS Combines9660 STS 720301 9760 STS 720401 , Block File: OUO6075_0003EE9_19

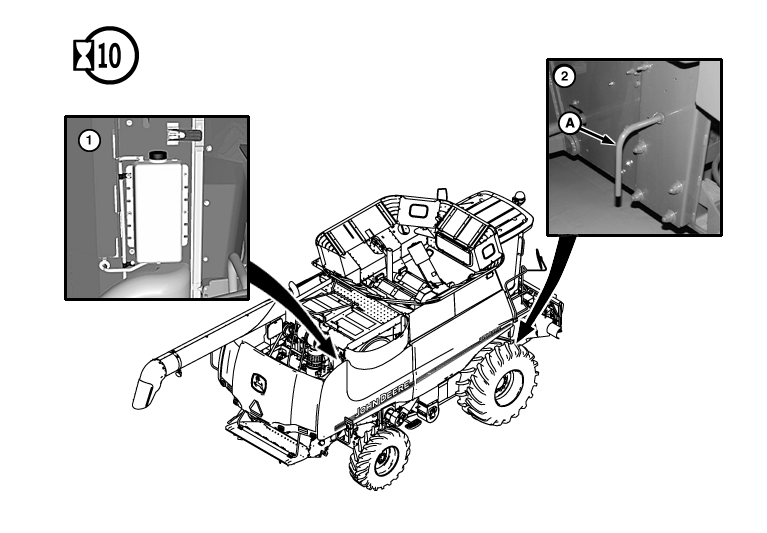

A-Stone Trap Lever

1. Recovery Tank - Check engine coolant level with engine cold, level must be up to the "COLD" mark.

2. Stone trap - At the end of each day, dump stone trap with lever (A).

OUO6075,0003EE9 -19-28MAR05-1/1
