IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur.

Fill crankcase with seasonal viscosity grade oil or TORQ-GARD SUPREME ™ (250 hours change interval). If using PLUS-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

Do not operate engine with oil level below low mark on dipstick.

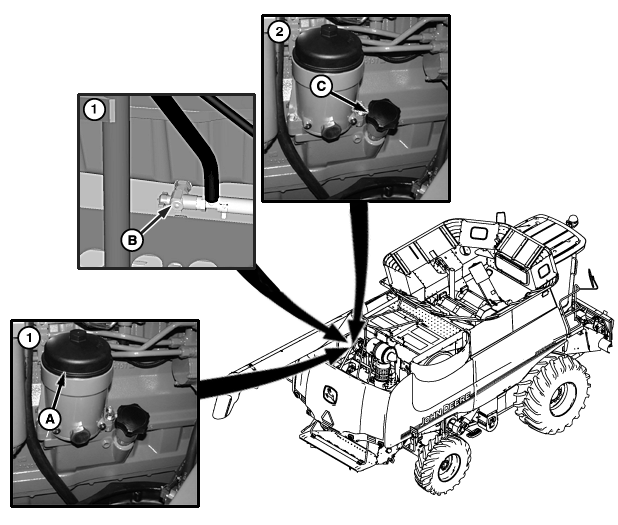

1. Engine Crank Case Filter Top Load Oil Filter - Remove cap (A) and remove old filter. Replace with new filter and install cap and tighten to specifications. Open drain (B) to remove oil.

Specification

2. Remove dipstick (C) to fill and check.

TORQ-GARD SUPREME is a trademark of Deere & Company
PLUS-50 is a trademark of Deere & Company

OUO6075,0003EEC -19-28MAR05-1/1
