Service As Required
|
|
1.

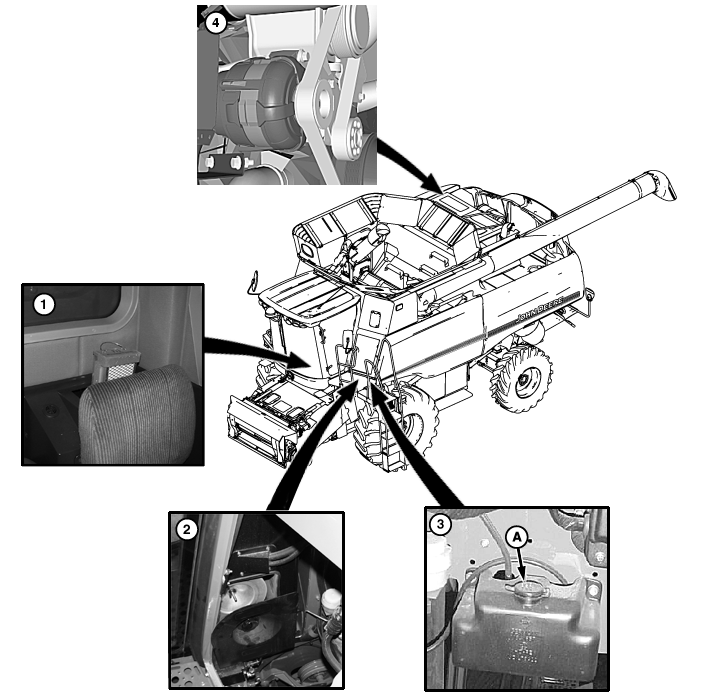

Recirculating Filter - Remove tray and lift out filter. Clean or replace as needed. Make sure air flow arrow points towards front of cab.
2. Cab Fresh Air Filter - Turn knob and pull out tray. Remove wing nut and pull out filter. Clean or replace as needed. |
3. Windshield Washer Reservoir (Optional) - Open cap (A) and fill windshield washer reservoir as needed. 4. Alternator Screen - Clean front and rear alternator screen when 50% covered with debris. |
OUO6075,0003EF9 -19-28MAR05-1/1 |
