Engine Compartment Work Lights

H83426
H83565
H83566
H83567

Engine Compartment Light Located on Front Side of Engine


A-Switch

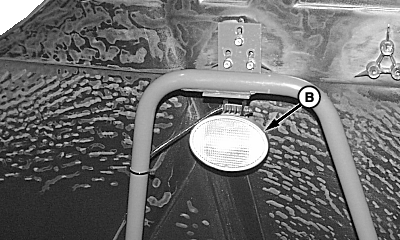

B-Engine Compartment Door Light

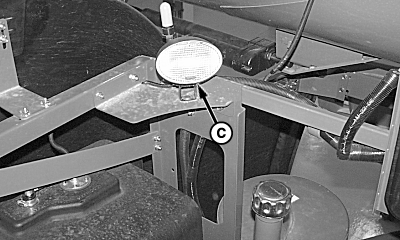

C-Engine Compartment Light

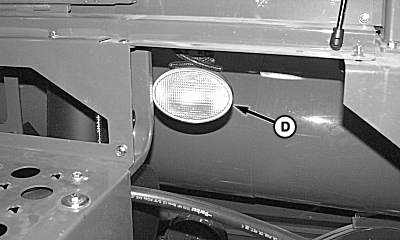

D-Engine Compartment Light

Engine compartment work lights provide additional lighting for the engine area.

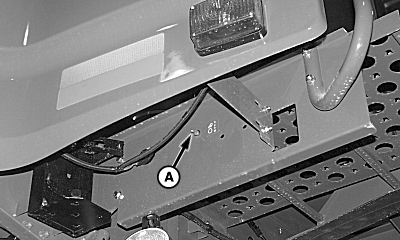

Engine compartment light ON/OFF switch (A) is located on the right-hand rear side of the machine.

This switch controls the engine compartment door light (B), and engine compartment lights (C) and (D).

OUO6075,0003F93 -19-23MAY05-1/1
