Warning Lights
 CAUTION:
Lights must be turned ON when transporting. Swing cab ladder fully forward to orient warning light towards oncoming motorists.

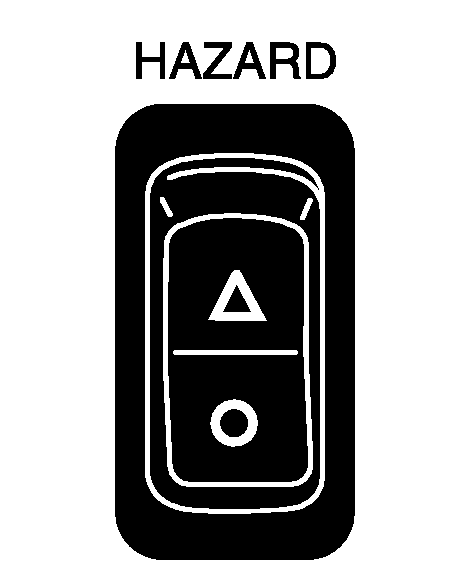

Warning light switch controls the warning (flashing) lights (A), four road lights (B) (if engine is running) and turn signals. The warning light switch is a two position switch (ON or OFF).

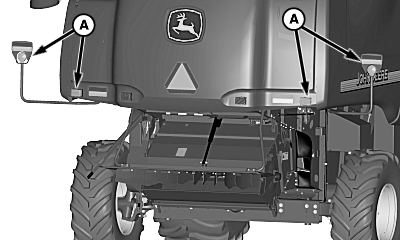

When transporting on a road, flashing lights give warning to other drivers. These lights are located on both sides at the front and rear of the combine.
A-Warning (Flashing) Lights
B-Road Lights
|
