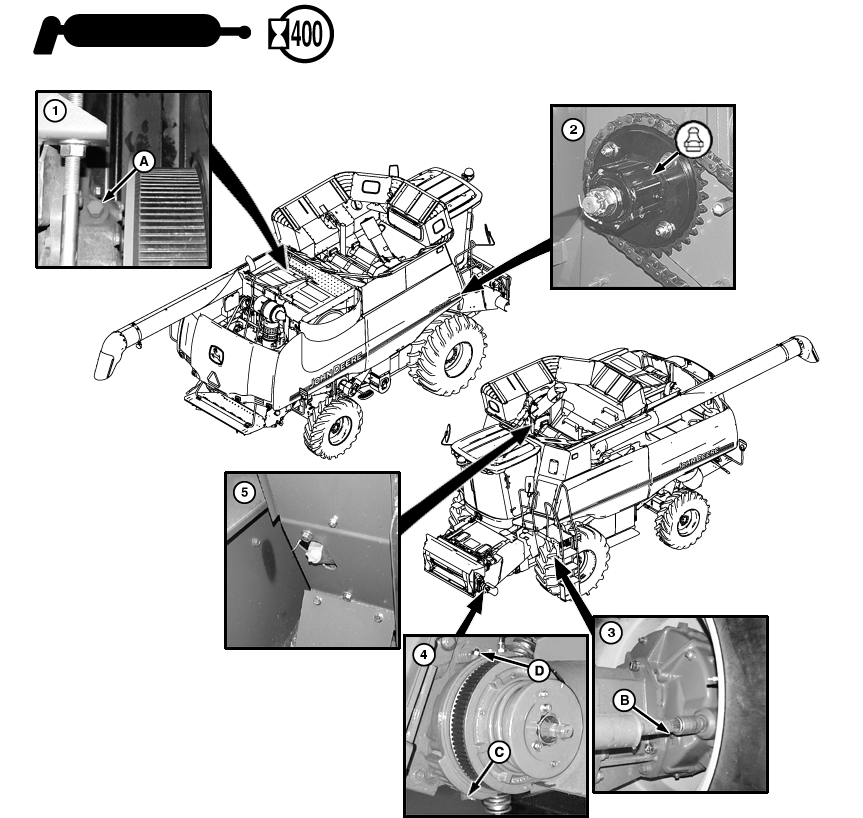

Every 400 Hours
|
|
|
|
|
|
1.
Single Tine Separator Two Speed Drive - Remove dipstick (A) and check oil level. Oil level should be between grooves on dipstick. Add oil as needed.
2. Feeder House Slip Clutch - Grease fitting on upper feeder house slip clutch, until grease is forced out past seal. |
3. Final Drive Oil - Remove plug (B) and check oil level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed. |
OUO6075,0004010 -19-05JUL05-1/2 |
| 4. Feeder House Reverser Gear Case - Raise feeder house and lower safety stop. Drain oil with plug (C) and refill at dipstick opening (D). Check oil level with feeder house raised up. Gear cases with an oil cooler will require the gear case be run for several minutes. This ensures that the cooler is filled with oil. Oil level must show on knurled part of dipstick. |
NOTE: Loading auger gear case does not need to be drained. 5. Loading Auger Gear Case - Check oil level with dipstick and add oil as needed. |
OUO6075,0004010 -19-05JUL05-2/2 |
