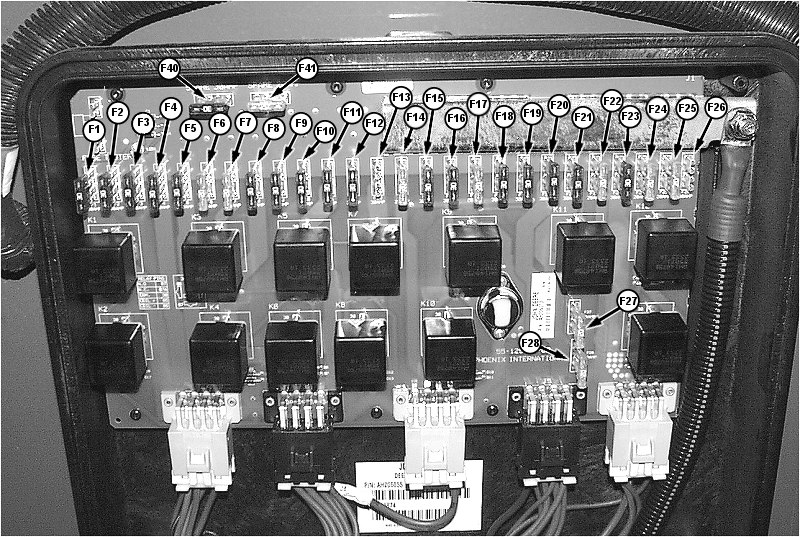

F1-Left Control Unit 1 Power
F2-Control Circuit Power 1
F3-Light Power 3
F4-Light Power 4
F5-Light Power 2
F6-Service Outlet Power
F7-Pressurizer Fan Power
F8-Motor Adjust Power 1
F9-Light Power 5
F10-Recirculation Fan Power
|
F11-Fan Speed Adjust/Folding Auger (Optional)
F12-Convenience Outlet Switched Power
F13-Unused
F14-Unused
F15-Left Control Unit 2 Power
F16-Service Lamp Power
F17-Electronic Power
|
F18-Light Power 1
F19-Convenience Outlet Unswitched Power
F20-Unswitched Electronic Power
F21-Ignition Switch - Battery Power
F22-Service Light Power
F23-Moisture Sensor Power
F24-Fuel Pump Switched Power
|
F25-Engine Control Unit Power
F26-Fuel Pump Unswitched Power
F27-HARVESTSMART Feed Rate (Optional)
F28-Control Circuit Power 3
F40-Spare 30 Amp
F41-Spare 20 Amp
|
