Detaching Corn Head from Feeder House

causym CAUTION: Do not leave drive shafts on combine. Personal injury or machine damage may occur if feeder house is accidentally engaged.

1. Disconnect telescoping drive shaft from feeder house at the quick disconnect coupler (A) on left-hand side of feeder house.

2. Place telescoping drive shaft in storage position (B).

IMPORTANT: Latch pins are not to be actuated with header on the ground. If multi-coupler must be actuated with header on ground, unhook cable from handle.

NOTE: Latch pins should be fully retracted when handle is all the way up against the stop. Adjust cable mounting if latch pins are not fully retracted (see Single Point Latching-Adjusting).

3. Remove quick-lock pin and slide lock plate through multi-coupler latch assembly.

4. Raise handle to disconnect multi-coupler.

5. Remove multi-coupler cover from storage position on header and place cover on combine multi-coupler.

6. Disconnect multi-coupler from combine and place in storage position (C).

H81317
H77454

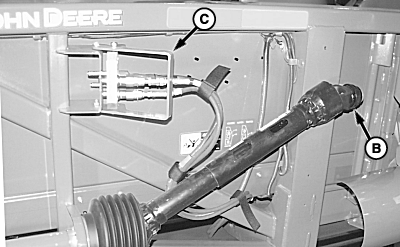

A-Quick Disconnect Coupler
B-Storage Position
C-Multi-coupler Storage Position

JK22594,0000092 -19-27JUL06-1/2

7. Sound horn, start engine, lower feeder house until hooks (A) are below top beam of head, and drive combine slowly rearward.


A-Hooks (2 on feeder house)

H70033

JK22594,0000092 -19-27JUL06-2/2
