Transporting Corn Head on a Trailer

causym CAUTION: Follow local regulations regarding width, lighting and marking.

IMPORTANT: Whenever possible avoid transporting the combine with the corn head attached. Instead, transport the corn head on a truck or header trailer.

Follow the header trailer manufacturer's recommendations regarding safe transport procedures. In absence of such instructions follow these guidelines:

  • Do not transport at speeds greater than 32 km/h (20 mph) on a trailer not equipped with brakes and 40 km/h (25 mph) on a trailer equipped with brakes.

  • Always attach a properly sized safety tow chain.

  • Always make sure a slow moving vehicle emblem is mounted to the rear of the trailer or header.

  • Always make sure that the rear of the trailer is equipped with red reflectors, two red taillights and turn signals.

Reference combine Operator's Manual for combine transporting procedures.

If equipped with ACTIVE HEADER CONTROL (AHC) ™ ground sensors, the sensors must be placed in storage position to prevent equipment damage when folding points (see next page for procedures).

To reduce transport width, the points and gathering shields should be folded upwards (see Points Folded for Transport illustration).

Center Gatherer Shields

H77464

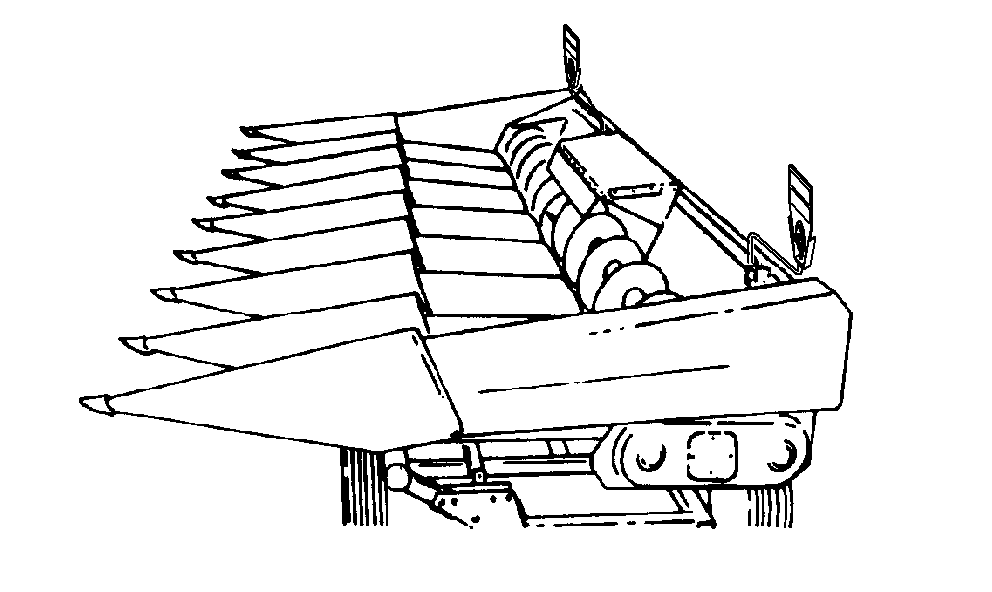

Normal Transport Width

H77465

Points Folded for Transport

ACTIVE HEADER CONTROL is a trademark of Deere & Company

JK22594,0000098 -19-09AUG06-1/7

1. Raise the point and remove quick-lock pins (A).

2. Remove spring locking pin and drilled pin (B).


A-Quick Lock Pin
B-Drilled Pin

H45822

JK22594,0000098 -19-09AUG06-2/7

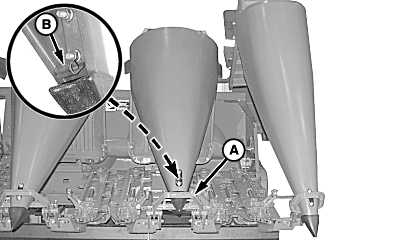

3. Press down on the point tip and pivot the point and gathering shield upwards and insert point through support (A) and insert drilled pin through pin support and transport loop (B). Retain drilled pin using spring locking pin.


A-Support
B-Transport Loop

H84025

JK22594,0000098 -19-09AUG06-3/7

IMPORTANT: If equipped with ACTIVE HEADER CONTROL (AHC) ground sensors, the sensors must be placed in storage position to prevent equipment damage when folding points.

4. Equipped with ACTIVE HEADER CONTROL (AHC): Rotate sensor arm (A) up into storage position and retain with storage lock pin (B).

Outer Gatherer Shields


A-Sensor Arm
B-Storage Lock Pin

H58551

JK22594,0000098 -19-09AUG06-4/7

1. Rotate header warning lights (A) rearward.


A-Warning Light

H77467

JK22594,0000098 -19-09AUG06-5/7

2. Raise point and remove quick-locking pin (A).

3. Remove spring locking pin and latch pin (B).


A-Quick Locking Pin
B-Latch Pin

H45826

JK22594,0000098 -19-09AUG06-6/7

4. Pivot the point and gathering shield upwards and insert point through support (A). Insert drilled pin through pin support and transport loop. Secure latch pin with spring locking pin.


A-Support

H58550
