Raising and Removing Center Gatherer Shields and Points.

causym CAUTION: Never run corn head with center shields raised or removed. Always shut off engine before leaving machine.

IMPORTANT: When tightening cap screw (A), do not exceed specification.

Specification

Cap Screws -Torque 20 N·m (15 lb-ft)

1. Loosen cap screw (A) on the rear of the gatherer shield and raise stop (B) to the vertical position.


A-Cap Screw
B-Stop

H45828
H45829

JK22594,0000099 -19-28JUL06-1/4

2. Raise the point and remove quick-lock pins (A).


A-Quick Lock Pins

H45830

JK22594,0000099 -19-28JUL06-2/4

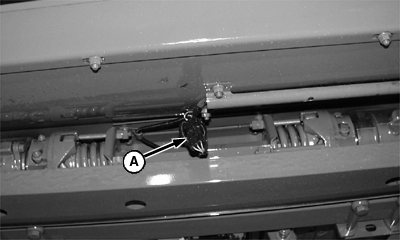

3. IF EQUIPPED: Disconnect ACTIVE HEADER CONTROL sensor wiring harness connector (A) (located under auger floor) from main wiring harness connector.


A-ACTIVE HEADER CONTROL Sensor Wiring Harness Connector

H59027

JK22594,0000099 -19-28JUL06-3/4

4. Press down on the point tip and lift the point and gatherer shield.

5. Slide the gatherer shield to the right until the shield is free of support pins (A).

causym CAUTION: The center shield and point assembly is heavy and awkward to handle.

6. Lift off point and gatherer shield assembly.


A-Support Pins

H49760
