Adjusting Gatherer Chain Flights

The gatherer chains are assembled at the factory with the chain flights (A) staggered between one another. If operating in unusual field conditions, the gatherer chain flights can be positioned opposite one another to be more aggressive.

IMPORTANT: Be careful to avoid rocks and other obstructions in the row when running gatherers close to the ground.

1. Remove center shield.

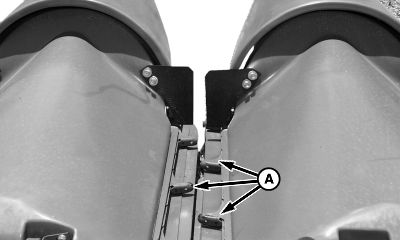

A-Chain Flights

H67148

JK22594,000009A -19-28JUL06-1/4

2. Tighten nut (A) against stop (B).

3. Remove nut (C).


A-Nut
B-Stop
C-Nut

H45838

JK22594,000009A -19-28JUL06-2/4

4. Remove flange head screws (A) from idler sprocket assembly.


A-Flange Screw

H45839

JK22594,000009A -19-28JUL06-3/4

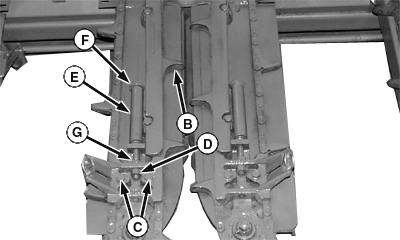

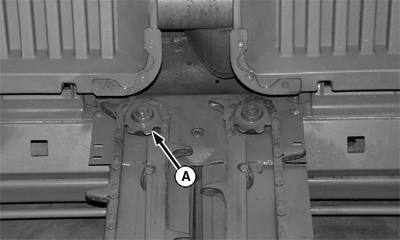

5. Lift chain off of sprocket (A) and rotate chain until flights are opposite each other (B).

6. Attach idler assembly with flange head screws (C).

7. Screw nut (D) onto bolt and tighten nut until there is 4.8 mm (3/16-in.) maximum space between spacer tube (E) and washer (F).

8. Screw nut (G) tight against idler assembly.


A-Sprocket
B-Flights
C-Flange Screw
D-Nut
E-Tube
F-Washer
G-Nut

H58632
H58633
