Leveling Header (6620, 7720 and 8820 Combines)

The header must be level when attached to the feeder house.

2. Take a position approximately 15 ft. (4.5 m) directly in front of the header.

3. Compare bottom of the header with the combine front axle.

IMPORTANT: Tires must be inflated to equal air pressure for accurate leveling adjustment. See tire inflation chart in combine operator's manual.

If header is not level, lower header onto wooden block under the end that needs to be raised.

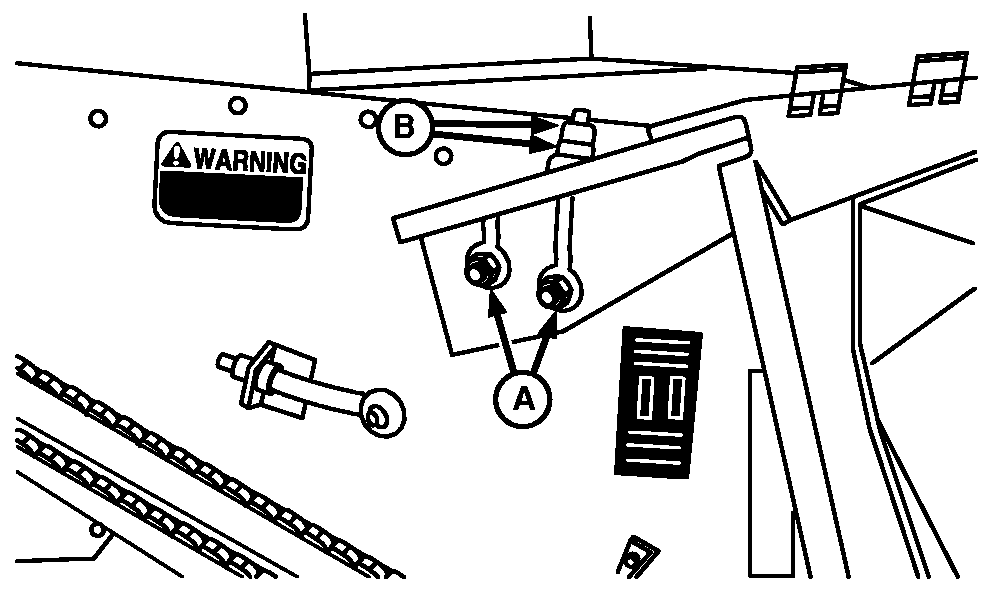

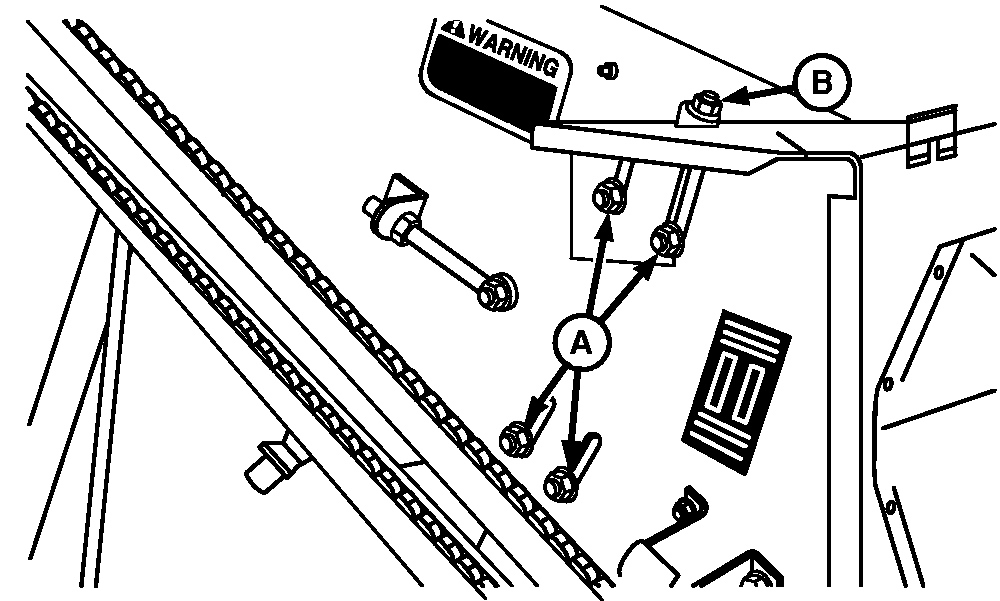

4. Loosen nuts (A) on right-hand side of feeder house.

5. To raise right-hand end of header, loosen nut (B).

6. To raise left-hand end of header, tighten nut (B).

7. When correct level is obtained, tighten nuts (A).

A-Nuts
B-Nut
