Remove/Install Oil and Oil Pan

NOTE: Place a pan under drain plug to capture oil.

Dispose of oil properly, do not reuse.

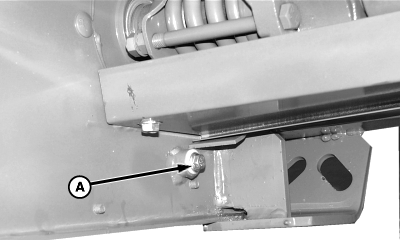

Remove drain plug (A).

IMPORTANT: Avoid damage to reusable seal on pan. Do not use sharp objects to pry between pan and corn head.

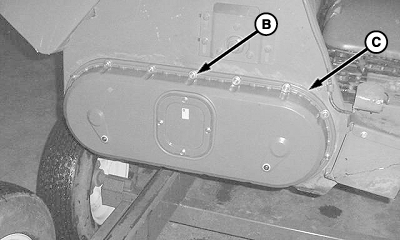

Remove cap screws and washers (B) and oil pan (C).

A-Drain Plug
B-Cap Screws and Washers
C-Pan

JK22594,00000C1 -19-07AUG06-1/3

IMPORTANT: Ensure a good seal, clean seal area on pan and corn head with a nonflammable cleaner.

NOTE: When retaining pan with cap screws, start in center and move outward.

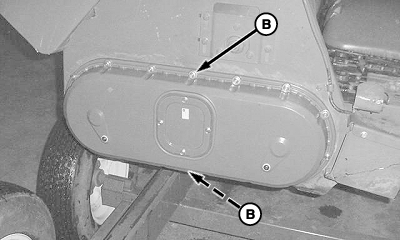

Reinstall drain plug (A) retain with cap screws and washers (B).

A-Drain Plug
B-Cap Screws and Washers

JK22594,00000C1 -19-07AUG06-2/3

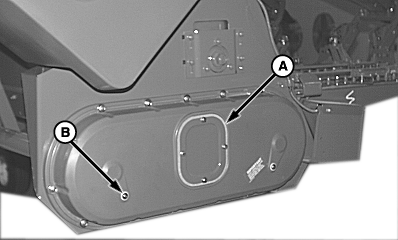

Remove fill plug (B) from cover (A).
