Adjust Rear Stripper Extensions
| Rear Auger Stripper Extension Placement |
| Combine Model |
Correct Position |
| 4435, 8820 |
Remove Stripper Extensions |
| Combines with CONTOUR MASTER * |
Remove Stripper Extensions |
| 4400, 4420, 6600 and 6620 |
B |
| 9560 STS |
B |
| 7700, 7720, 9400, 9410, 9500, 9510, 9550 and 9560 |
C |
| 9660 STS, 9760 STS and 9860 STS |
C |
| 9600 CWS, 9610 CWS, 9650 CWS, 9660 CWS and 9660 WTS |
D |
| * This does not apply to 9X60 series combines. |
894 and 1293 corn heads are shipped from the factory with the auger strippers in position (D). All other heads are shipped from factory with strippers in position (C).
|

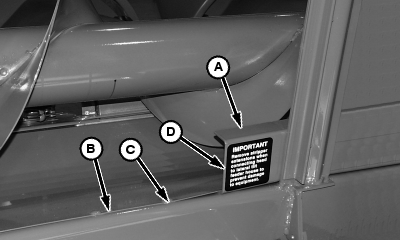

Figure A
A-Auger Stripper
B-Extension Location
C-Extension Location
D-Extension Location
|
