Raising and Removing End Fenders and Points

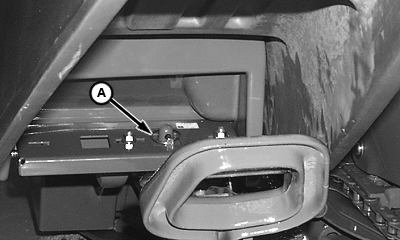

Rotate header warning lights (A) rearward.

A-Warning Lights

MH81805,0000716 -19-17MAR05-1/3

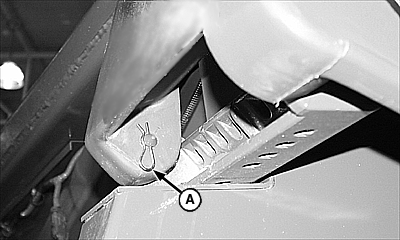

Remove spring locking pin (A) securing top of end fenders to support.

A-Spring Locking Pins

MH81805,0000716 -19-17MAR05-2/3

Raise point and remove quick-lock pin (A).

CAUTION: Outer point and shield is heavy and awkward to handle.

Raise point and shield and slide shield off of hinge pins.

Lift outer gatherer shield and point assembly off of row unit.

A-Quick-Lock Pin

MH81805,0000716 -19-17MAR05-3/3
