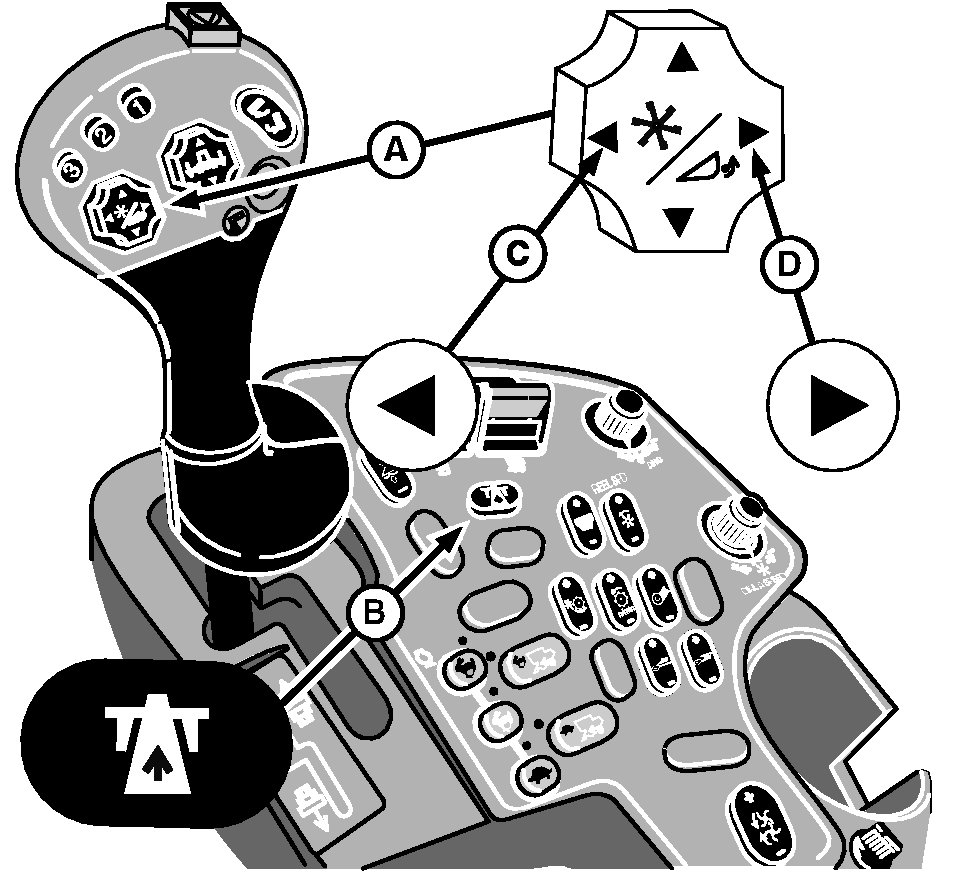

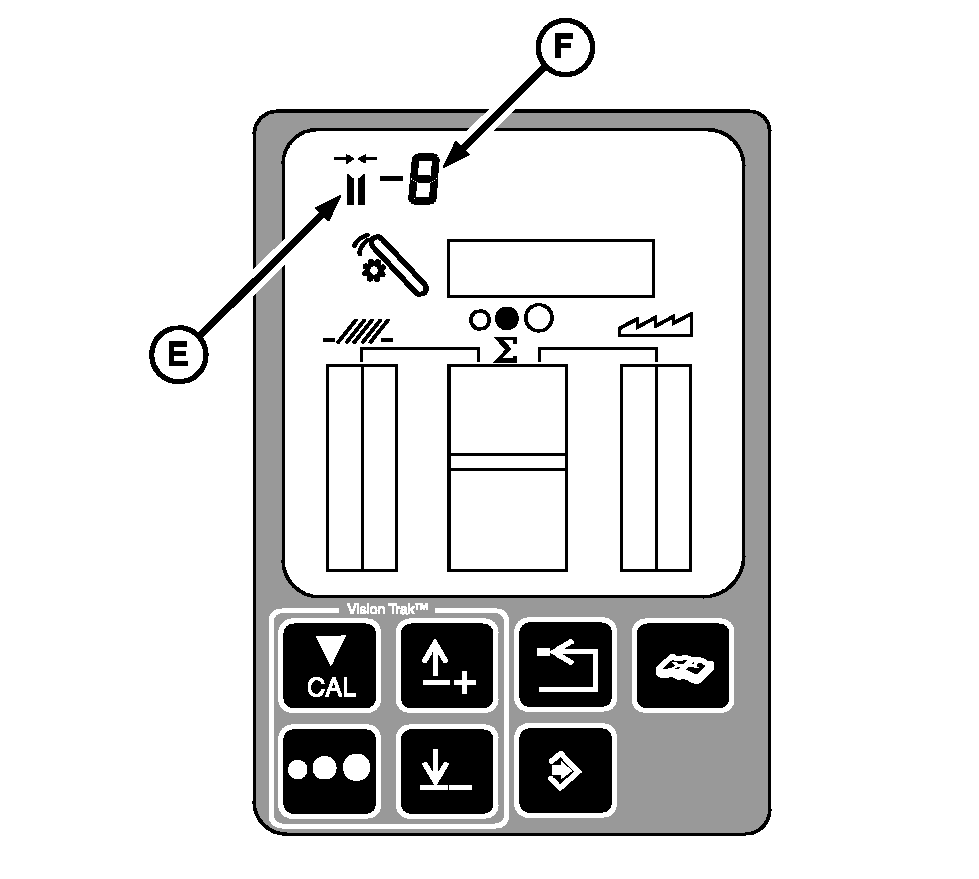

Hydraulic Adjustable Deck Plates (Optional)NOTE: To calibrate adjustable deck plates, see Calibration Procedures section. The reel fore/aft switch (A) on the multifunction control handle allows the operator to open and close the adjustable deck plates on 90 Series Corn heads. The deck plates can be moved only when engine is running and road transport disconnect switch (B) is in the field position. Pressing the reel forward switch (C) opens the deck plates and pressing the reel aft switch (D) closes the deck plates. IF EQUIPPED: The deck plate position icon (E) and deck plate opening value (F) (a numerical value between 0 and 9) will be displayed in the upper left-hand side of the display. Zero will be displayed with the deck plates closed and 9 will be displayed with the deck plates opened to maximum position.
|
|
