CONTOUR MASTER System (Optional)

H52277
H74738

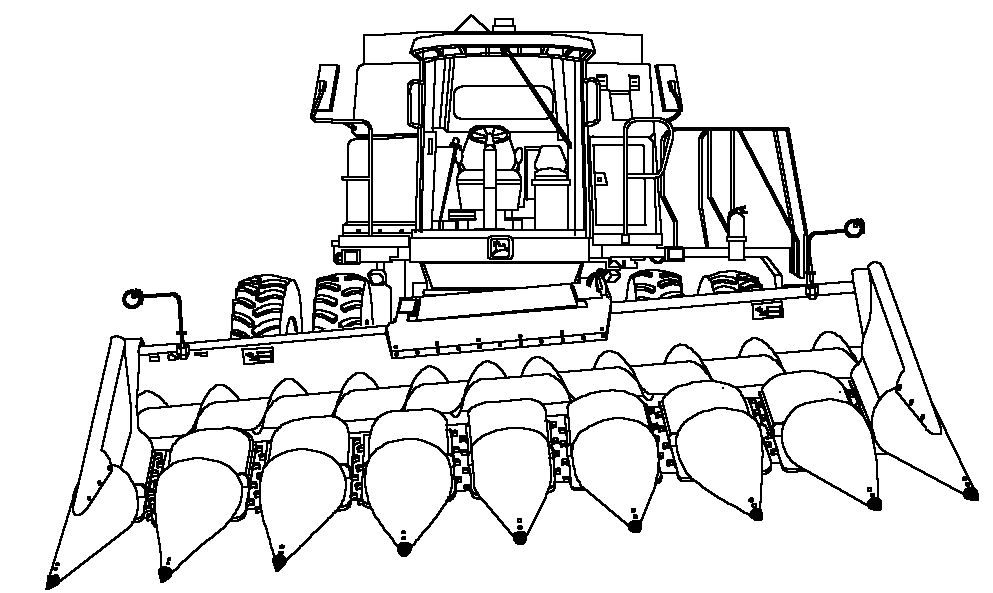

CONTOUR MASTER is an optional system that maintains the header position relative to the ground. Sensors are used to determine the height at each end of the header. CONTOUR MASTER tilts the header to equalize the distances to the ground at each end of the header. The system uses a special feeder house that allows the header to tilt left and right. If equipped with header height sensing-HYDRAFLEX (optional), the two systems work together to position the cutterbar close to the ground.

CONTOUR MASTER is calibrated from factory. If further calibration is needed, (see Calibration Procedures section).

Activation buttons 1, 2, or 3 are used to select one of three different programmed angle contours.

NOTE: When CONTOUR MASTER is active, the system works independently from header

height resume and header height sensing. For header height resume and header height sensing, (see Calibration Procedures section).

When CONTOUR MASTER is disabled, header height sensing and header height resume will still operate.

Operation

CONTOUR MASTER will be active when:

  • Properly equipped header is connected to combine
  • Engine is running
  • Road transport disconnect switch is in field position
  • Header has been calibrated
  • CONTOUR MASTER is enabled
  • Header engage switch "ON"

MH81805,0000725 -19-17MAR05-1/2

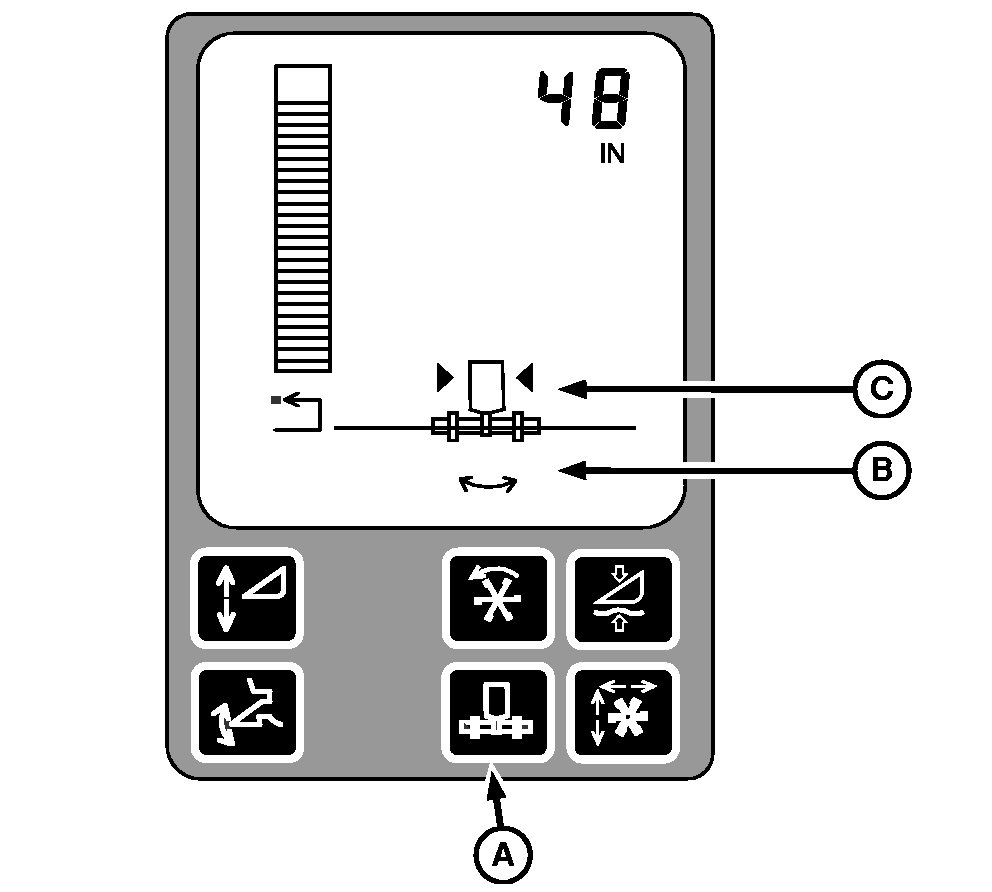

System is enabled by pressing button (A). Symbol (B) will appear on display.

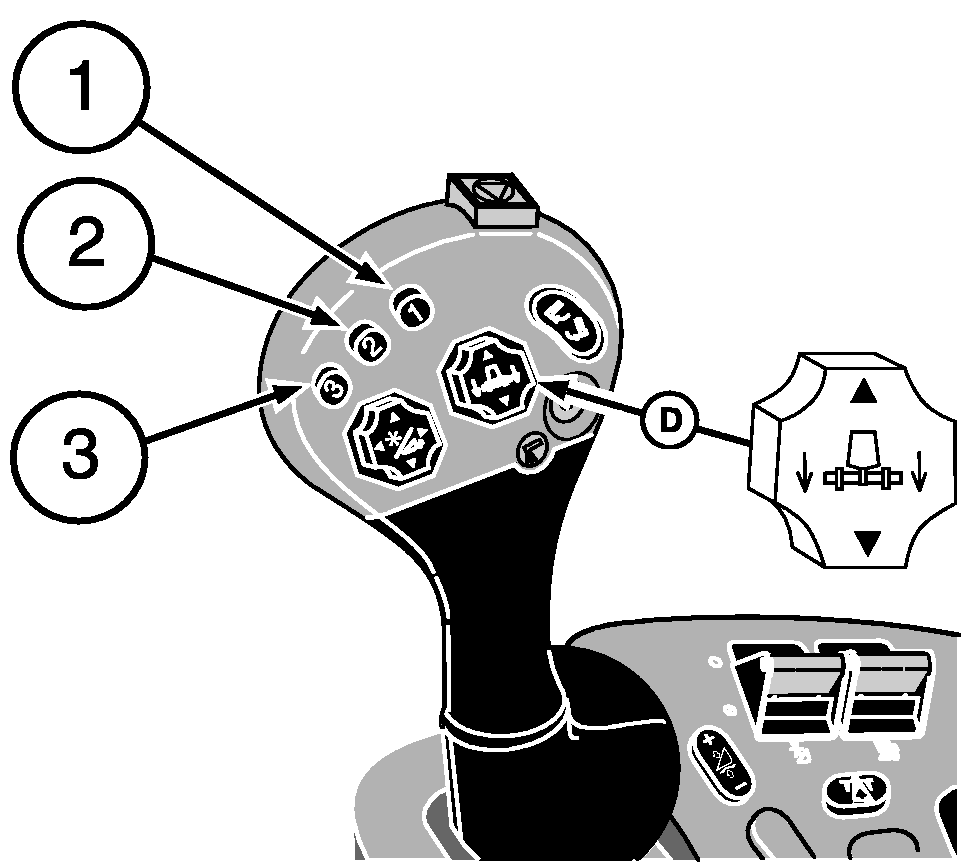

Activate CONTOUR MASTER by pressing activation buttons 1, 2 or 3 on the multifunction control handle. Arrows symbols (C) indicate system is active.

NOTE: Press CONTOUR MASTER manual tilt switch (D) to override CONTOUR MASTER system. When switch is released system returns to automatic mode.

Press right side of switch to tilt header right or press left side of switch to tilt header left.

Press any of the three activation buttons to reactivate system. Header will move to selected angle contour.

CONTOUR MASTER is disabled by pressing button (A).


A-CONTOUR MASTER Activation Button
B-Tilt Symbol
C-System Active Arrows
D-CONTOUR MASTER Manual Tilt Switch

H74818
H74743

MH81805,0000725 -19-17MAR05-2/2
