12-Row Auger Adjustment Only

Adjust the auger height and fore-and-aft as follows:

1. Loosen nuts (A) on both sides and raise shield (B).


A-Nut (2 used)
B-Shield

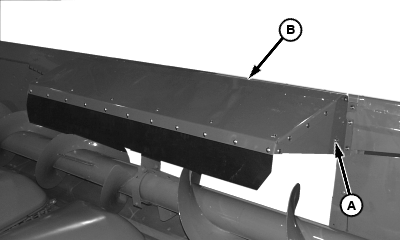

H67308

MH81805,0000735 -19-17MAR05-1/2

2. Loosen three flange nuts (A).

3. Loosen nut (B).

4. Adjust nut (C) to move auger up or down.

5. Move auger fore-and-aft as necessary according to specifications.

IMPORTANT: There must be 22 mm (7/8 in.) clearance between auger flighting and floor and a 6 mm (1/4-in.) clearance between auger flighting and stripper.

Specification

Auger Flighting and Floor -Clearance 22 mm (7/8-in.)
Auger Flighting and Stripper -Clearance 6 mm (1/4 in.)

6. If raising auger off of the floor 76 mm (3 in.) for use in food corn, remove carriage bolts (D) and raise auger to align slots (E) with top slots (F). Install carriage bolts and retain with nuts.

7. Tighten all nuts to specification.

Specification

Nuts -Torque 80 N·m (60 lb-ft)

8. Close auger shield and tighten nuts.

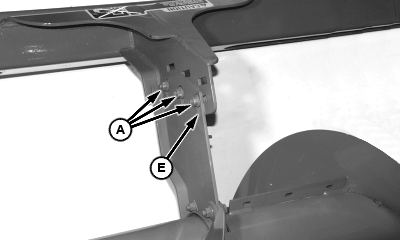

H67290

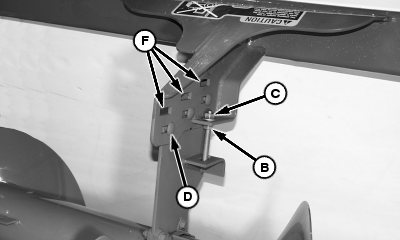

H67286


A-Flange Nut (3 used)
B-Nut
C-Nut
D-Carriage Bolt (3 used)
E-Slot (3 used)
F-Top Slot (2 used)

MH81805,0000735 -19-17MAR05-2/2
