Reversing Gatherer Chains and Sprockets for Additional Wear

The gatherer chains and sprockets can be reversed for additional wear. This should be done to all row units at the same time. To reverse the chains and sprockets:

2. Remove rear sprockets (A) and (B).

3. Install sprocket (A) on row unit (D).

4. Install sprocket (B) on row unit (C).

5. Turn sprockets (E) over and install in the same locations.

6. Turn gatherer chain (F) over and install on row unit (C).

7. Turn gatherer chain (G) over and install on row unit (D).

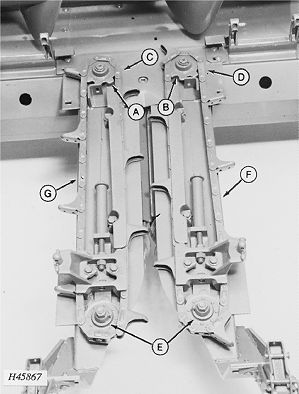

A-Rear Sprockets
B-Rear Sprockets
C-Row Unit
D-Row Unit
E-Sprockets
F-Gathering Chain
G-Gathering Chain
