Header Warning Light Bulb Replacement

NOTE: Use a flat-blade screwdriver.

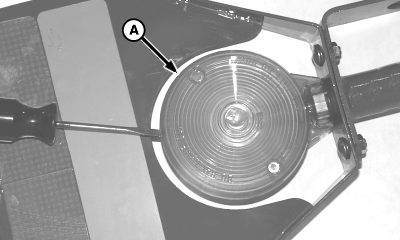

Carefully, pry-off lens (A) from light.

Push bulb (B) in and turn to remove.

Install new bulb.

Press lens back onto light housing.


A-Lens
B-Bulb

H72107
H72106

MH81805,0000746 -19-17MAR05-1/1
