Replacing Corn Stalk Chopper Knives

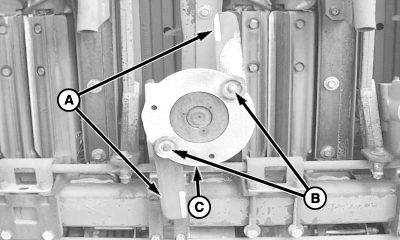

To change chopper knives (A), remove flange nut (B) and cap screw (not shown) that holds knife between plate (C). Replace knife and reinstall cap screw and flange nut. Tighten cap screw and flange nut to specification.

Specification

Flange Nut -Torque 120 N·m (88.5 lbs-ft)


A-Chopper Knives
B-Flange Nut
C-Plate

H83000

MH81805,0000833 -19-20APR05-1/1
